MR8904
MR8904
Hioki
Input Module for MR8875
This product is available in 5-7 weeks
Input Module for MR8875Key Features
- Input CAN Port: 2 ports, D-sub 9-pin male connectors
- Standards: ISO 11898 CAN 2.0b, ISO 11898-1, -2, -3, SAE J2411
- Interface: High-speed, low-speed, or single-wire CAN (selectable per port)
- Transmit ACK: ON/OFF for CAN signal acknowledgment
- Terminator: ON/OFF, 120 Ω built-in resistance
- Baud Rate: 50 kbps to 1 Mbps (high-speed), 10 kbps to 125 kbps (low-speed), 10 kbps to 83.3 kbps (single-wire)
- Analysed Output Channels: Up to 15 analogue and 16 logic channels
- Signal Form: 1-bit to 32-bit signals (analogue and logic)
- Response Time: Within 200 µs of receiving CAN message
- Dimensions: 119.5 mm (W) × 18.8 mm (H) × 151.5 mm (D)
- Weight: 185 g

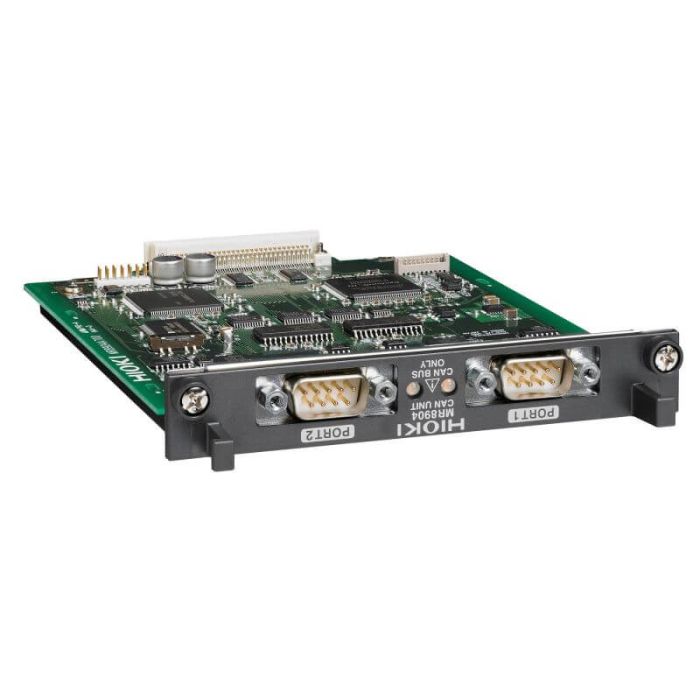

The Hioki MR8904 is a dual-port CAN (Controller Area Network) input module designed to interface with Memory recorder. It supports high-speed, low-speed, and single-wire CAN configurations, making it versatile for automotive and industrial applications. This module enables the analysis of up to 15 analogue and 16 logic channels from CAN signals, providing precise data extraction and logging with fast response times.
In stock
Attribute | Value |
---|---|
Data Sheet | Click here to view |
