MSOX3012A
MSOX3012A
Keysight Technologies

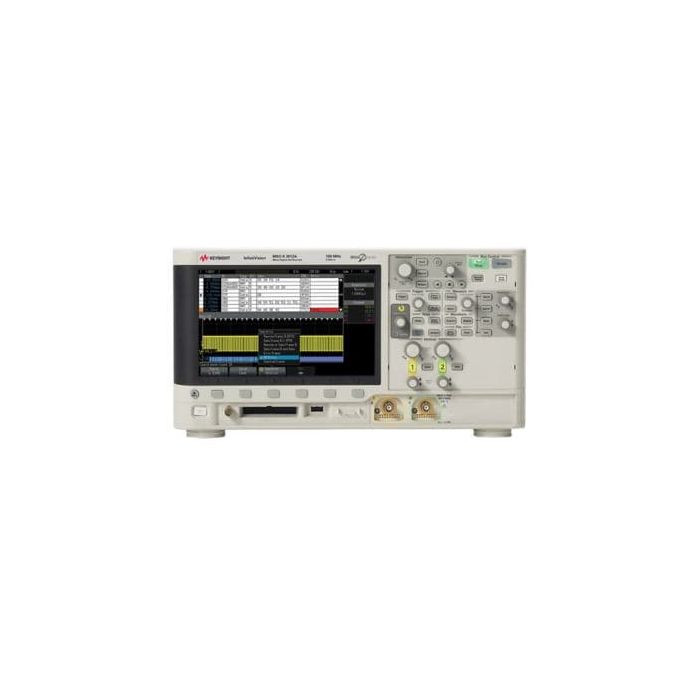

Keysight InfiniiVision 3000G X‑Series 100MHz Mixed Signal Oscilloscope: 2 Analogue and 16 Digital Channels
Make measurements you can trust - Keysight 3000T X-Series oscilloscopes deliver high-end technology in a smaller form factor, with an extremely intuitive touch user interface. With an industry-leading waveform update rate, you can capture elusive glitches and anomalies not possible on other oscilloscopes.
Achieve 100 MHz of bandwidth and an immersive signal detail of 1,000,000 waveforms/second update rate with the Keysight MSOX3012A. With the advanced measurement capabilities of the MSOX3012A, Keysight oscilloscopes will help you test more efficiently whilst solving measurement challenges faster and easier. The MSOX3012A provides 2 analogue plus 16 digital channels, 4 Mpts memory and an 8.5-inch WVGA display.
Whats Included
- 3-year warranty (90 days for unserialized accessories such as passive probes)
- Certificate of calibration, 2-year calibration interval
- Secure erase
- One N2890A passive probe 500 MHz, 10:1 attenuation 1 per channel
- One N2756-60001 16 digital channel MSO cable
- Interface and built-in help language support for English, Japanese, simplified Chinese, traditional Chinese, Korean, German, French, Spanish, Russian, Portuguese, Italian, Thai, and Polish.
- Localized power cord
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form | Mixed Signal |
| Range | InfiniiVision |
| Bandwidth | 100 MHz |
| ADC Bits | 8 bits |
| Max Memory Depth | 4 Mpts |
| Max Sample Rate | 4 GSa/s |
| Bandwidth Upgrades | Available |
| Display Size | 8.5-inch WVGA display |
| Waveform Update Rate | 1,000,000 wfms/s |
| Channels | 2 + 16 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
