MSOX3012G

MSOX3012G

Keysight Technologies

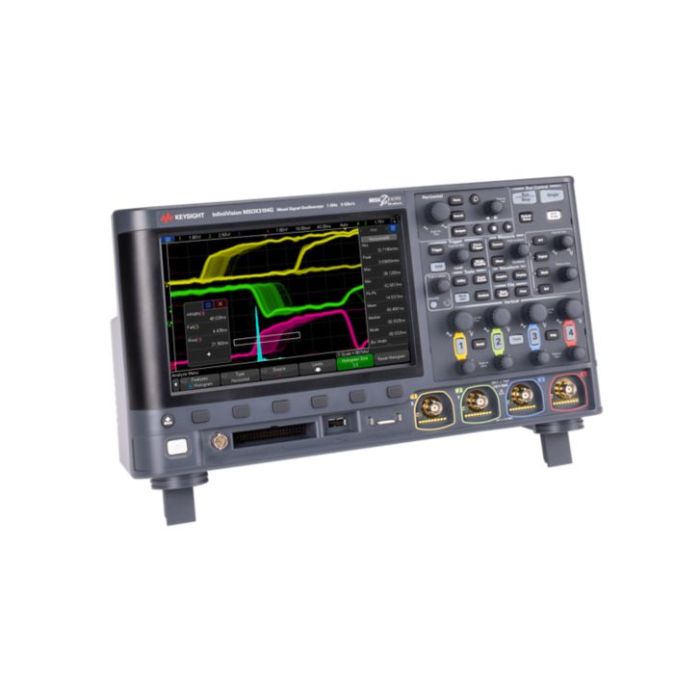

InfiniiVision 3000G X‑Series 100MHz Mixed Signal Oscilloscope, 2 Analogue and 16 Digital Channels

The Best in Usability Deserves the Best Features - Meet the new generation of Keysight’s industry-leading InfiniiVision X-Series Oscilloscopes. The Keysight InfiniiVision X-Series offers high-end performance in a compact form factor, with bandwidth models ranging from 100MHz up to an immersive 1GHz.

The MSOX3012G 100 MHz oscilloscope provides 2 analogue plus 16 digital channels, 4 Mpts memory, 1,000,000 waveforms/sec update rate, zone touch trigger with an 8.5-in capacitive touch screen, and standard embedded software with waveform and measurement histograms.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Form Mixed Signal
Series 3000G X-Series
Bandwidth 100 MHz
Channels 2 + 16
Whats Included
  • Embedded Software Package (D3000GENB)
  • PathWave BenchVue Oscilloscope Software (BV004B)
  • Waveform and measurement histograms
  • Instrument integration: oscilloscope (with LAN / VGA connectivity module), protocol analyzer, frequency response analyzer (Bode plots), 20 MHz arbitrary waveform generator, 3-digit voltmeter, 8-digital counter and totalizer, and mixed-signal oscilloscope for 16 digital channels
  • N2843A passive probe: 500 MHz, 10:1 attenuation (1 per channel)
  • N2756A 16 digital channel MSO cable
  • Factory 3-year warranty (90 days for unserialized accessories such as passive probes)
  • KeysightCare technical support
  • Certificate of calibration, 3-year calibration interval
  • Secure erase
  • Multi-language interface and help: English, Chinese (simplified), Chinese (traditional), Czech, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Polish, Thai, Turkish
  • Documentation CD containing localized user’s guide, service guide, and programmer’s manual
  • Localized power cord and overlay
ADC Bits 8 bits
Max Memory Depth 4 Mpts
Max Sample Rate 5 GSa/s
Bandwidth Upgrades Available
Display Size 8.5-in capacitive touch screen
Special Triggers
  • CAN (Optional)
  • Edge
  • I²C
  • Pattern
  • Pulse Width
  • Rise / Fall Time
  • Runt
  • SPI
  • Setup & Hold
  • Video
  • Zone (HW Zone Qualifier)
Waveform Update Rate 1,000,000 wfms/s
Range InfiniiVision
More Information
Attribute Value
Data Sheet Click here to view
