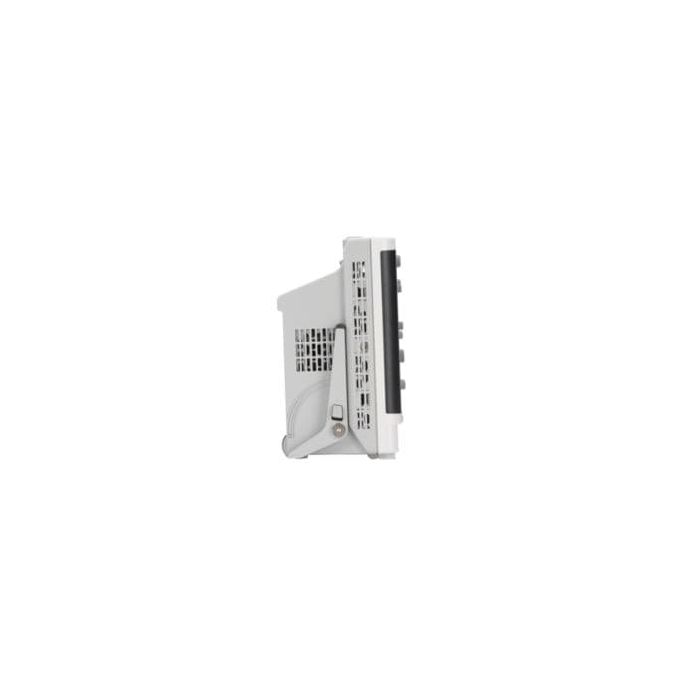

MSOX4052A
MSOX4052A
Keysight Technologies
500MHz Mixed Signal Oscilloscope: 2 Analogue and 16 Digital Channels
Keysight InfiniiVision 4000 X-Series oscilloscopes are engineered for next-generation performance to deliver waveform update rates 20 times faster than the competition. A large 12.1-inch capacitive touch screen combined with innovative hardware-based zone touch triggering means you can easily capture and view your signals. Have confidence you will catch even the rarest of glitches and see more with the 4000 X-Series.
Achieve 500 MHz of bandwidth and a dynamic signal detail of 1-million-waveforms/second update rate with the Keysight MSOX4052A. The MSOX4052A turns the most advanced triggering into one easy step with the InfiniiScan Zone touch triggering. Jam-packed with cutting-edge features, Keysight's MSOX4052A also boasts capacitive touch screen technology, MegaZoom IV smart memory technology and standard segmented memory. The MSOX4052A is a mixed signal oscilloscope, providing you with 2 analogue channels and an additional 16 digital channels.
Whats Included
- 3-year warranty (90 days for unserialized accessories such as passive probes)
- Certificate of Calibration, 2-year calibration interval
- One N2894A 700 MHz passive probe (10:1 attenuation) per channel
- N2756-60001 16-digital-channel MSO cable per oscilloscope
- Localized interface, front panel overlay and built-in help system in English, Chinese (simplified and traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish
- Localized power cord
- Front panel cover
- Documentation CD containing localized user’s guide, service guide, and programmer’s manual
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form | Mixed Signal |
| Range | InfiniiVision |
| Series | 4000 X-Series |
| Bandwidth | 500 MHz |
| ADC Bits | 8 bits |
| Max Memory Depth | 4 Mpts |
| Max Sample Rate | 5 GSa/s |
| Bandwidth Upgrades | Available |
| Display Size | 12.1-inch capacitive touch screen |
| Special Triggers |
|
| Waveform Update Rate | 1,000,000 wfms/sec |
| Channels | 2 + 16 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
