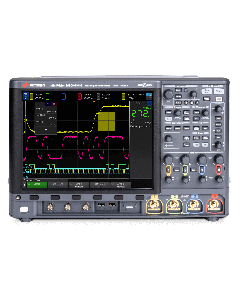

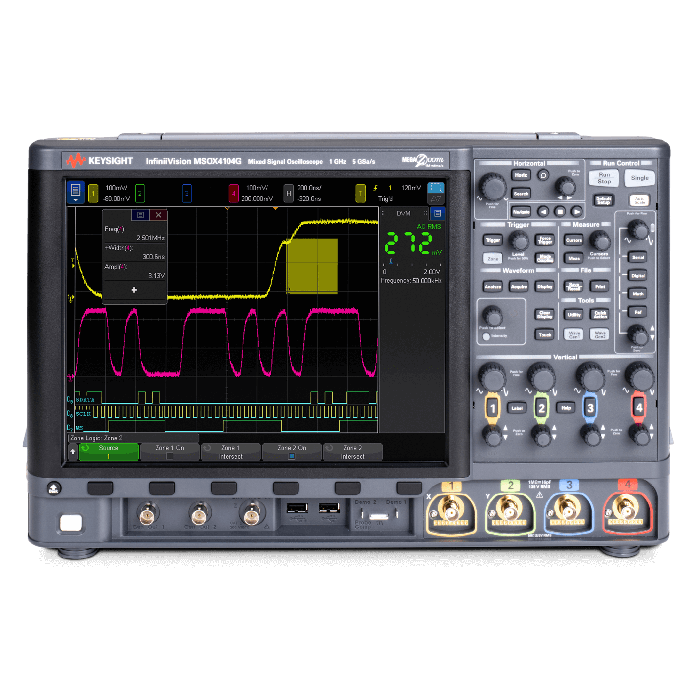

Keysight MSOX4154G 1.5 GHz Oscilloscope provides 4 analogue channels + 16 digital channels, up to 4 Mpts memory and 1,000,000 waveforms/sec update rate

The Keysight 4000G X-Series encompasses a combination of advanced performance, intuitive usability and versatile functionality

The 4000G X-Series offers the industry-leading capabilities engineers value in InfiniiVision, such as the fastest uncompromised waveform update rate and the world’s easiest triggering capability, zone trigger. The 4000G raises the bar with advanced features now included in the standard configuration, creating a combination of advanced performance, intuitive usability, and versatile functionality.

4000G X-Series – Versatility Unleashed, Possibilities Amplified

Advanced

  • Industry’s only uncompromised 1,000,000 waveforms per second update rate
  • Zone trigger, segmented memory, FFT, math
  • Standard on G models: dual WaveGen, mask testing, FRA, histograms, some serial decodes

Intuitive

  • Large touchscreen with easy-to-use interface and built-in help, zone trigger
  • Options made standard in an easy bundle with G models

Versatile

  • 7 instruments integrated in 1
  • General debug to industry-specific analysis
  • License upgradeable
  • Extensive probe and accessories portfolio

4000G X-Series Bundled with Advanced Options, Standard

The Keysight 4000G X-Series includes all of the optional add on bundles of the 4000A X-Series as STANDARD.

  • Dual, built-in waveform generators
  • Waveform & measurement histograms
  • Mask limit testing
  • Measurement limit testing
  • Frequency response analysis (Bode plots)
  • I2C, SPI, UART, I2S, and USB PD trigger & decode
  • Enhanced HDTV video analysis
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • Bandwidth - 200 MHz to 1.5 GHz
  • Analogue channels - 2 or 4
  • Digital Channels - 16 (MSO models or upgrade)
  • Waveform update rate - 1,000,000 wfms/s uncompromised
  • Max sampling rate - 5 GSa/s
  • Touch screen size - 12.1 in
  • Zone trigger - Standard
  • WaveGen - Dual integrated function/arbitrary waveform generator
  • Segmented memory - Standard
Bandwidth 1.5 GHz
Channels 4 + 16
Whats Included
  • Calibration - Soft copy of Certificate of Calibration (CoC) with measurement results, 2-year calibration interval
  • Probes - One per channel N2894A 700 MHz passive probe (10:1 attenuation), N2756A 16-digital-channel MSO cable (1 per oscilloscope included on all MSO models and DSOXPERFMSO)
  • Localised interface - English, Chinese (simplified and traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish localised front panel overlays, interface, and built-in help system
  • Power cord - Localised power cord
  • Front panel protection - Front panel cover
Max Memory Depth 4 Mpts
Display Size 12.1-inch high-definition capacitive touch display 800 (H) x 600 (V) pixel format (screen area)
Waveform Update Rate > 1 million waveforms per second
Series 4000G X-Series
Range InfiniiVision
Dimensions 469 mm x 275 mm x 156 mm
Sample Rate 5 Gsa/s
Rise Time ≤ 300 ps
Connectivity Standard USB2.0, LAN, video out (GPIB option)
More Information
Attribute Value
Data Sheet Click here to view
