MSOX6004A

MSOX6004A

Keysight Technologies

InfiniiVision 6000 X-Series Mixed Signal Oscilloscope, 1 GHz, upgradeable to 6 GHz, 20 GS/s, 4 Channel

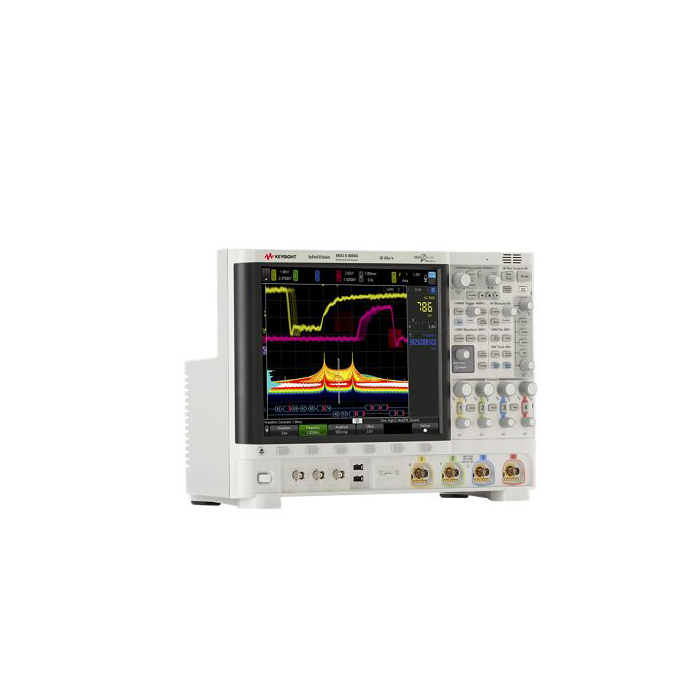

main product photo

The 6000 X-Series offers a 12.1-inch capacitive multi-touch display, InfiniiScan Zone touch triggering, voice control, and the capabilities of up to 6 instruments in 1.

Contact us for Lead Time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries, call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Operating System Embedded
Memory 4 Mpts
Bandwidth 1 GHz to 6 GHz
Channels 2 - 4
Whats Included
  • 3-year Factory warranty (90 days for unserialized accessories such as passive probes)
  • Certificate of calibration, 2-year calibration interval
  • One N2894A 700-MHz passive probe (10:1 attenuation) per channel
  • One N2756A 16-digital-channel MSO cable
  • Localised interface front panel overlay and built-in help system in help English, Chinese (simplified and traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish
  • Voice control support in English, Chinese Simplified, Chinese Traditional, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish (Latin America) and Spanish (Castilian)
  • Localised power cord
  • Front-panel cover
  • Documentation CD containing localised user’s guide, service guide, and programmer’s manual
ADC Bits 8 bits
Max Memory Depth 4 Mpts
Max Sample Rate 20 GSa/s
Bandwidth Upgrades 16 (MSO models or upgrade)
Display Size 12.1 inch
Special Triggers Touch Zone Trigger, edge, pulse width, video, protocol decodes, zone touch, edge then edge, pattern, runt pulse, rise/fall time, Nth edge burst, setup and hold
Waveform Update Rate > 450,000 wfms/sec
Key Features
  • Oscilloscope
  • 16 digital channels (mixed signal)
  • Serial protocol analyser
  • Dual-channel 20-MHz function/arbitrary waveform generator
  • Frequency response analysis (Bode plot)
  • 3-digit voltmeter
  • 10-digit counter with totaliser
Features
  • 1– 6 GHz
  • 4 analog plus 16 digital channels
  • Easily view and isolate signals on the 12.1-in capacitive multi-touch screen with Zone triggering and 450,000 wfms/s update rate
  • Make more precise measurements with 115 Vrms noise floor at 1 mV/div (1 GHz)
  • Get performance measurements anywhere with the portable 6-in deep size
  • Quickly see analysis details with standard histogram and color grade
  • View signal integrity with jitter and eye diagram analysis options
  • Expand capabilities with full upgradability
Connectivity Standard USB2.0, LAN, video out (GPIB option)
More Information
Attribute Value
Data Sheet Click here to view
