MT3D-0113LSM
MT3D-0113LSM
Marki Microwave
GaAs MMIC T3 Mixer with Differential IF
MT3D-0113LSM is a GaAs MMIC triple balanced mixer with high dynamic range and low conversion loss. This mixer belongs to the T3 family which offers high IP3, P1dB, and broad operating bandwidths for applications in the S, C and X bands. The MT3D0113LSM has on-chip baluns for the LO and RF ports, while offering differential ports on the IF for flexible operation with an external balun or differential interface.

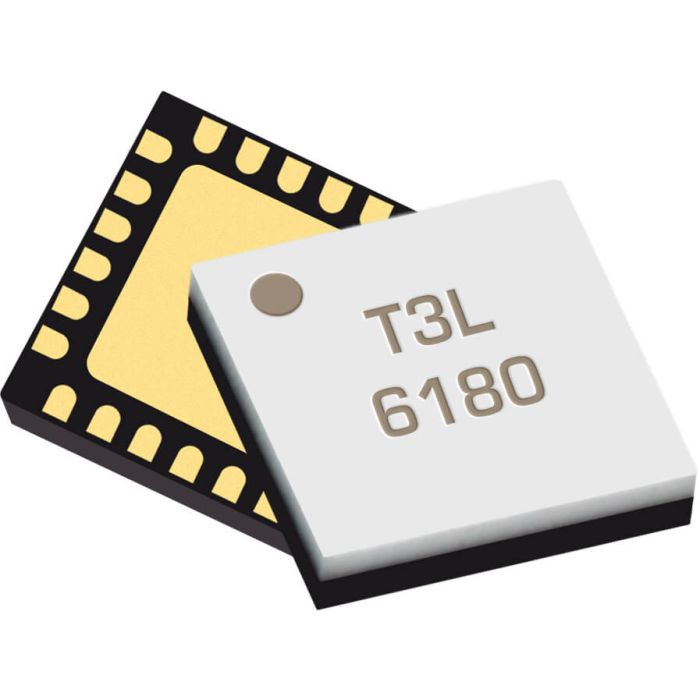

The MT3D-0113LSM is available in a 4x4 mm QFN package.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Applications |
|
| LO Drive Min (dBm) | +11 to +25 |
| Conversion Loss (dB) | 7.5 |
| Isolations L-R (dB) | 43 |
| RF/LO (GHz) Low | |
| RF/LO (GHz) High | |
| IIP3 (dBm) | +27 |
| Product Type | T3 Mixer |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
