DC Electronic Load Module, 0-150V, 30A, 250W, for N330X mainframes, 1 slot

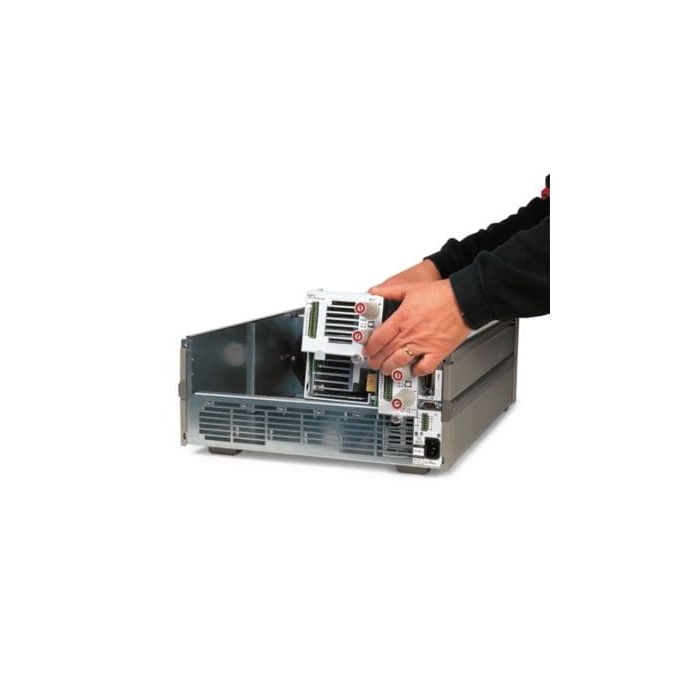

The Keysight N3307A is a 250 W (0-30A, 0-150V) electronic load module for use in either the N3300A or N3301A electronic load mainframe in system applications. The N3307A load module is fast and accurate, for programming in constant current, constant voltage, or constant resistance modes, or for making voltage, current or power measurements. The N3307A can also digitize waveforms.

Testing multiple output dc power supplies and dc-dc converters can be very time consuming if each output must be tested sequentially. If measurements are being made through a MUX using one DMM, this is what will happen. Using the built-in measurement capabilities of the N3300A electronic loads, all outputs can be measured simultaneously. Alternatively, multiple single output power sources can be tested simultaneously.

A single GPIB address is all you need for complete control and read-back of the N3307A load module within a single N3300A or N3301A mainframe. The N3307A electronic load provides fast operation and the accurate programming and read-back needed for high-volume DC power supply test systems.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Options Custom solutions
  • N3307A-UJ1 - 8mm screw terminal
Calibration documentation
  • N3307A-UK6 - Commercial calibration certificate with test data
  • N3307A-A6J - ANSI Z540-1-1994 Calibration
Key Features Input Ratings
  • Current: 0 - 30 A
  • Voltage: 0 - 150 V
  • Maximum Power: 250 W
Constant Current Mode
  • Low Range/High Range: 3 A/30 A
  • Regulation: 10 mA
  • Low Range Accuracy: 0.1% + 7.5 mA
  • High Range Accuracy: 0.1% + 15 mA
Constant Voltage Mode
  • Low Range/High Range: 15 V/150 V
  • Regulation: 10 mV
  • Low Range Accuracy: 0.1% + 10 mV
  • High Range Accuracy: 0.1% + 20 mV
Constant Resistance Mode
  • Range 1 (I >10% of current rating): 0.067-10 Ω
  • Range 2 (I >1% of current rating): 9-100 Ω
  • Range 3 (I >0.1% of current rating): 90-1000 Ω
  • Range 4 (I >0.01% of current rating): 900-2500 Ω
Power 600 W
Voltage 0-150 V
Current 30 A
Additional Services KeysightCare Service Plan OC
  • R-55D-001-3Z - KeysightCare Technical Support - 3 years
  • R-55D-001-5ZU - KeysightCare Technical Support - Upgrade to 5 years
Calibration service plan
  • R-50C-011-3 - Calibration Plan - Return to Keysight - 3 years
  • R-50C-011-5 - Calibration Plan - Return to Keysight - 5 years
Return to service center warranty and service plan - includes Service Pack
  • R-51B-001-Z - Return to Keysight Warranty - 3 years
  • R-51B-001-5Z - Extended Warranty - Return to Keysight - 5 years
