Keysight Technologies

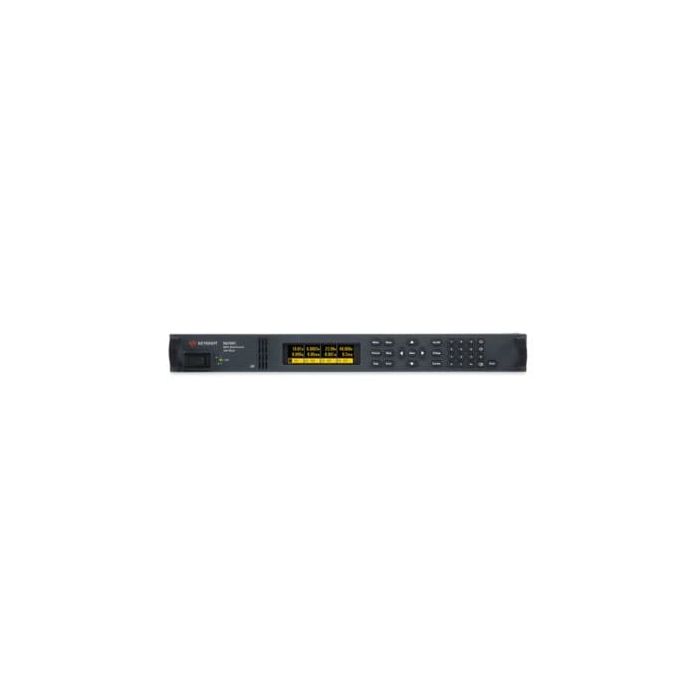

N6700C Low-Profile Modular Power System Mainframe, 400W, 4 Slots

The Keysight N6700C is a 400 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series DC power modules in any combination. Modules are ordered separately. The N6700C offers GPIB, LAN, and USB, interfaces standard, and LXI compliance. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 300 W.

BenchVue software enabled: Do more with your PC and instrument together, no programming required. Easily control your power supplies to set parameters and quickly build automated tests on your PC.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Select the Right Battery Emulation Solution for Your Application

BV9211B/ BV9200B battery test and emulation software is a powerful solution that can significantly enhance your device’s battery performance. Minimizing battery drain can accelerate innovation, enabling smaller designs and IoT categories.

More Information
Attribute Value
Key Features Maximum Total Output Power (= Sum of Total Module Output Power)
  • 400 W when operating from 100 - 240 VAC input
AC Input
  • Nominal Input Ratings: 100 VAC - 240 VAC; 50/60/400 Hz
  • Input Range: 86 VAC - 264 VAC
  • Power Consumption: 1000 VA typical
  • Fuse Internal fuse (not customer accessible)
Protection Response Characteristics
  • INH input: 5 µs from receipt of inhibit to start of shutdown
  • Fault on coupled outputs: < 10 µs (from receipt of fault to start of shutdown)
Power 400 W
More Information
Attribute Value
Data Sheet Click here to view
