N6735B

N6735B

N6735B

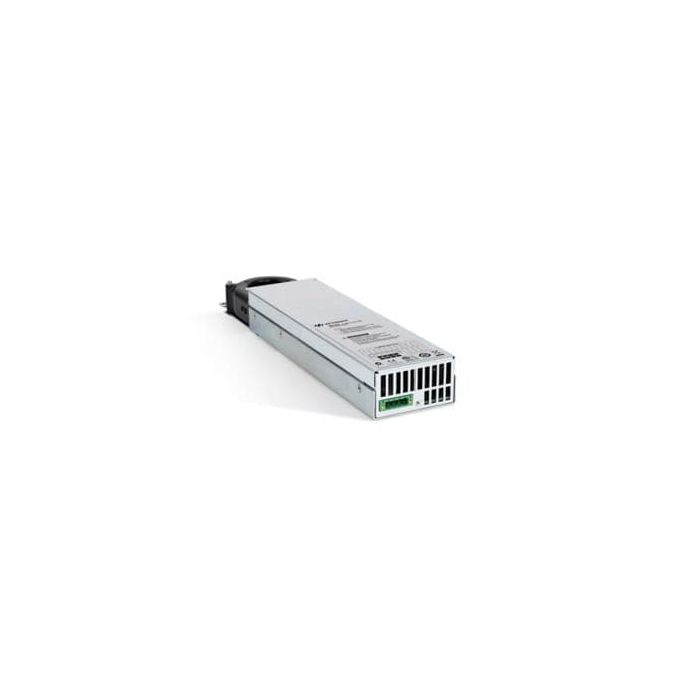

Keysight Technologies

DC Power Module 60V, .8A, 50W

The Keysight N6735B is a 50 W basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.

This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 300 W.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features Output Ratings
  • Voltage: 60 V
  • Current: 0.8 A
  • Power: 50 W
Programming Accuracy (at 23°C ±5°C)
  • Voltage: 0.1% + 60 mV
  • Current: 0.15% + 20 mA
Ripple & Noise (20 Hz to 20 MHz)
  • Voltage rms: 9 mV
  • Voltage peak-to-peak: 25 mV
  • Current rms: 2 mA
Power 50 W
Voltage 60 V
Current 0.8 A
More Information
Attribute Value
Data Sheet Click here to view
