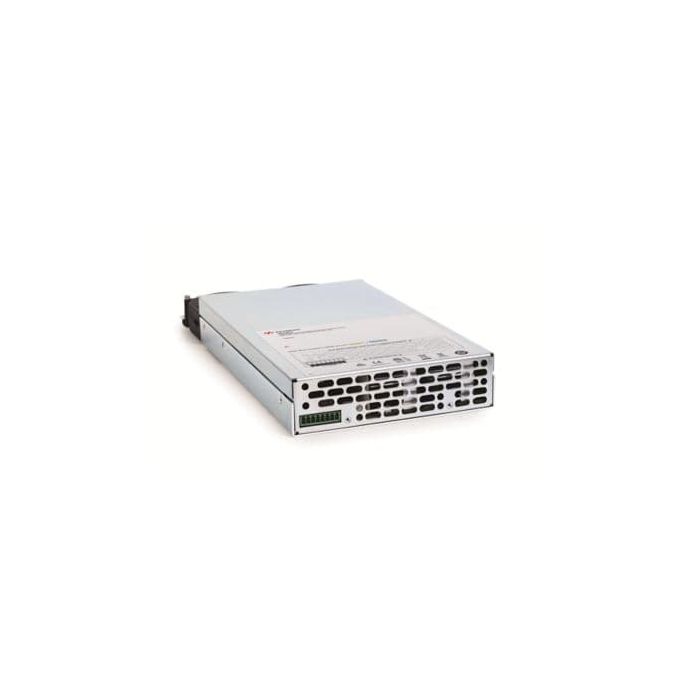

N6786A
N6786A
Keysight Technologies
Source/Measure Unit for Functional Test, multiple ranges, 80 W, double-wide
Deliver exceptional battery life
Only Keysight`s N6780 Series SMUs let you visualize current drain from nA to A in one pass and one picture unlocking insights to deliver exceptional battery life.
Exceptional sourcing: Accurately emulate a battery
- Stable, glitch-free sourcing and sinking (charge/eLoad), just like a battery
Exceptional measurement: Make measurements you didn’t think were possible
- Characterize your device’s off-, sleep-, and transmit-mode current in one pas and one picture with Keysight’s exclusive, patented seamless measurement ranging technology - no need to make multiple measurement sweeps
- Perform battery rundown tests and characterize how your device performs with an actual battery with the SMU’s ammeter (zero-burden current shunt) mode
Exceptional Analysis: See your device’s power consumption like never before
- Built-in digitizer measures and logs voltage, current, and power every ~5 us (~200 kHz)
- 14585A software provides scope, data logger, and CCDF functionality to see and analyze short- and long-term power usage
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
Output ratings:
Output voltage ripple & noise (PARD) from 20 Hz – 20 MHz:
Programming accuracy (at 23°C ± 5°C after 30 minute warm-up. Applies from min. to max. program):
Measurement accuracy (at 23°C ± 5°C)
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
