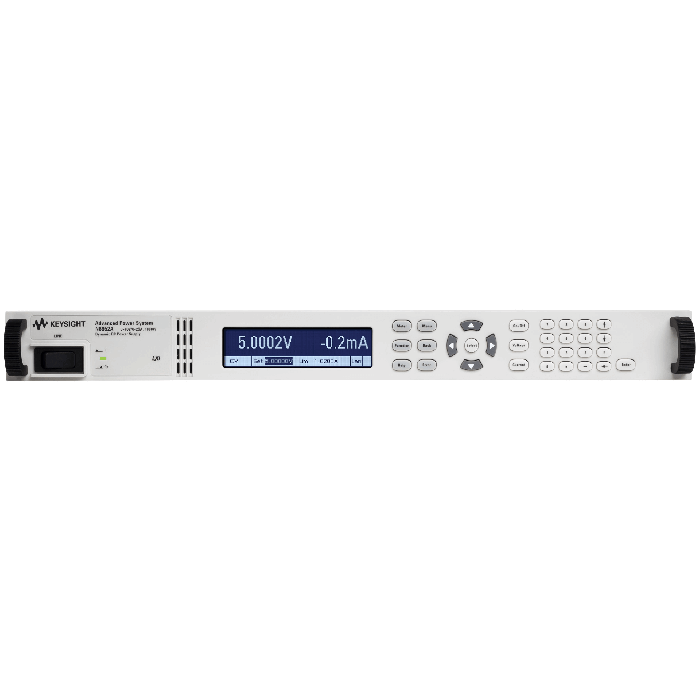

N6970A

The N6970A is designed for automated test equipment (ATE) applications where high performance is critical.

Accurately characterise your DUT's power profile with advanced measurement capability

• Dual voltage and current measurement capability with DMM-like accuracy
• Power, peak power, watt-hour, and amp hour measurements

Add power flexibility to your test system

• Increase power dissipation from 10% to full two-quadrant operation with N7909A power dissipater
• Parallel N6900 supplies up to 10kW with equal current sharing among paralleled supplies
• Track power events with optional N7908A black-box recorder
• Add advanced display, setup, and measurement functions by downloading Keysight's free application: APS Power Assistant Software

Optimise testing with the N6900, versatility was never faster

When designing high-performance ATE systems, there’s an art to the tradeoffs you make when asked to “integrate fast and test faster within budget.” That’s why Keysight’s N6900 Series DC power supplies are small, flexible, and market-leading fast. And with our VersaPower architecture, you can tune the N6900 for the optimum balance of test coverage, quality, and time.

Turn any APS power supply into not only a source but a load as well, which is great for power storage applications. Add full, 2-quadrant operation to any APS power supply with the N7909A APS power dissipater unit.

If you have ATE applications where a full-featured, high-speed dynamic sourcing and measurement is needed, consider the APS N7900 Series power supplies.

BenchVue software enabled: Do more with your PC and instrument together, no programming required. Easily control your power supplies to set parameters and quickly build automated tests on your PC.
