N7909A
N7909A
Keysight Technologies
Advanced Power System – Power Dissipater Unit

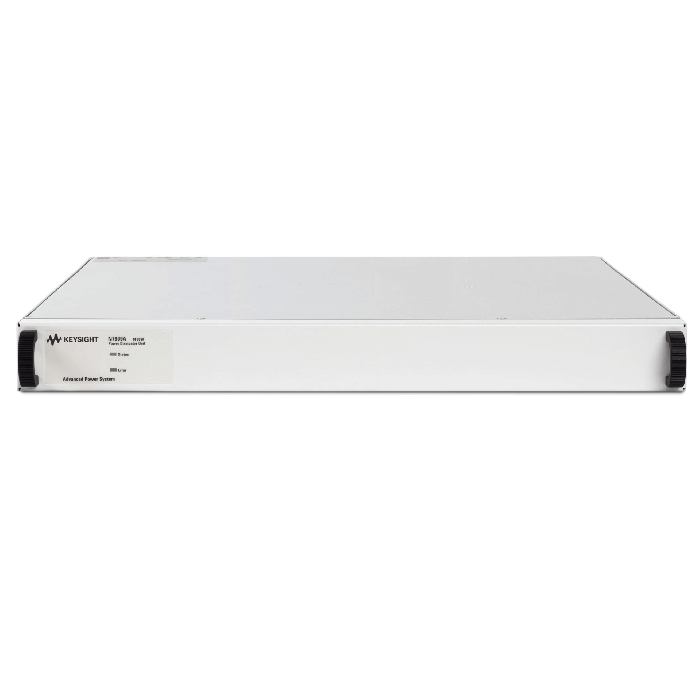

The Keysight N7909A power dissipater unit adds current sinking or two-quadrant operation to any Advanced Power System (APS) N6900A or N7900A power supply. Each N7909A provides up to 1 kW of current-sinking capability to an APS power supply, so you will need two N7909As to achieve full two-quadrant operation of a 2-kW APS supply. You can use a single N7909A unit with a 2-kW APS power supply to achieve 50% current sinking capability. The N7909A form factor is 1U and full rack width. N7909A connects to an APS power supply via a two-wire power connection and a communication connection to provide continuous two-quadrant operation. The connections are on the rear panel of the N7909A and the supply.
Note that the N7909A does not operate as a standalone instrument. It only works with an APS power supply. Additional information on the APS’s 2-quadrant operation:
- The APS provides programmable +/- current waveform capability to fully utilise the two-quadrant operation
- The APS provides +/- current limit settings to ensure your device is operated in its allowable range
- By default, the APS’s current sink capability will perform down programming for pulling down voltage levels when it is connected to loads with stored energy, for instance, loads with a large amount of parallel capacitance at their input.
- All these capabilities are also available when you use a standalone APS power supply’s 10% rated output current sinking capability without the N7909A power dissipater unit
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Dimensions | L 19.81 in / 503.3 mm, W 16.81 in / 426.9 mm, H 1.75 in / 44.45 mm |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
