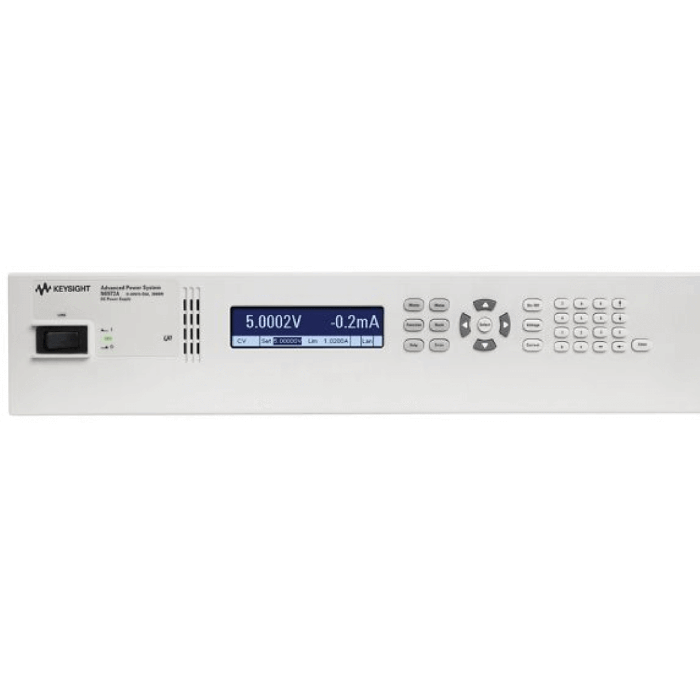

N7977A
N7977A
Keysight Technologies
Advanced Power System: Dynamic DC Power Supply, 160 V,12.5 A
The N7977A is designed for automated test equipment (ATE) applications where high-speed dynamic sourcing and measurement is needed.
Accelerate test throughput with industry-leading specifications
- Test speeds 100x faster than standard system power supplies
- Command processing speed < 2ms
- Fast up/down programming speeds up to 500 µs
- Adjustable measurement rate to balance speed and accuracy
Accurately characterise your DUT's power profile with advanced measurement capability
- Dual voltage and current measurement capability with DMM-like accuracy
- Power, peak power, watt hour, and amp hour measurements
Full two-quadrant operation for power storage test applications
- Provides continuous smooth operation between +current and - current transitions
- Provides + and - programmable current limits, programmable + and - current waveforms, and automatic down programming
- Full two-quadrant operation requires N7909A power dissipater units, standalone power supply offers 10% rated current two-quadrant operation
Track power events with a black-box recorder
- Optional accessory N7908A black-box recorder
- Works in the background tracking power events whenever the APS supply is on
- Records measurement data, trigger events, status bits, and more
Add power flexibility to your test system with built-in APS paralleling up to 10 kW
- Ensures equal current sharing among paralleled supplies
- Implemented with three wire connection on power supply rear panel
- Ensures each paralleled supply operates in its intended mode, whether that is CV or CC
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Attribute | Value |
---|---|
Outputs | 1 |
Dimensions | L 22.39 in / 568.7 mm, W 16.81 in / 426.9 mm, H 1.75 in / 44.45 mm |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
