ETS-Lindgren

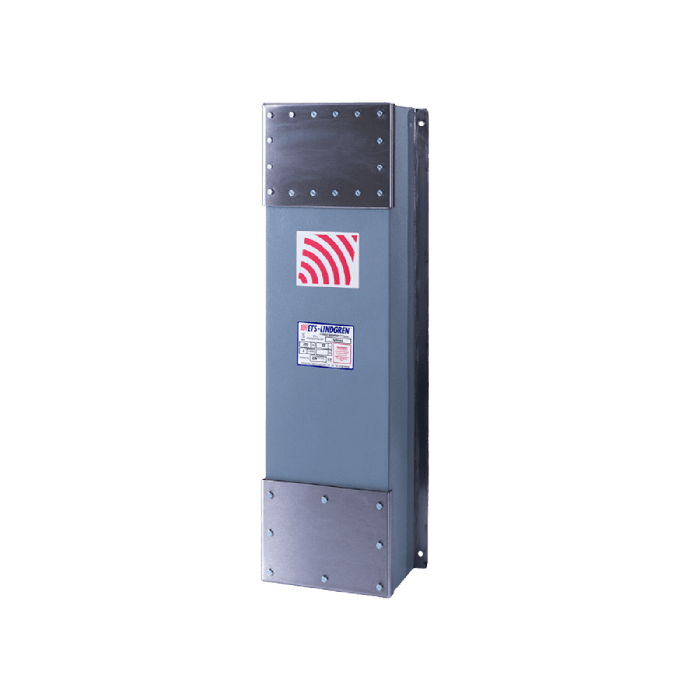

N900X Series Power Filter, 4 x 32 A, 0-250/440 VAC, 0–400 Hz
N900X Series Power Filters
High-performance power line filter for shielded room and EMC applications. Suitable for 0–400 Hz, with low leakage and robust mechanical construction.
Key Features:
- Voltage rating up to 250/440 VAC
- Frequency range 0–400 Hz
- Operating temperature -55 °C to +85 °C
- Voltage drop < 1 V at full load
- Available in 2-line and 4-line configurations
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Dimensions | 16.9 cm (6.6 in) (L) x 44.6 cm (17.7 in) (W) x 72.5 cm (28.5 in) (H) |
| Weight | 33.0 kg |
| Current Rating | 4 x 32 A |
| Filters | Panel-mount power line filter |
| Frequency Range | 0–400 Hz |
| Power Voltage | 0-250/440 VAC |
| Operating Voltages | 0-277/480 VAC |
