N9923A
N9923A
Keysight Technologies

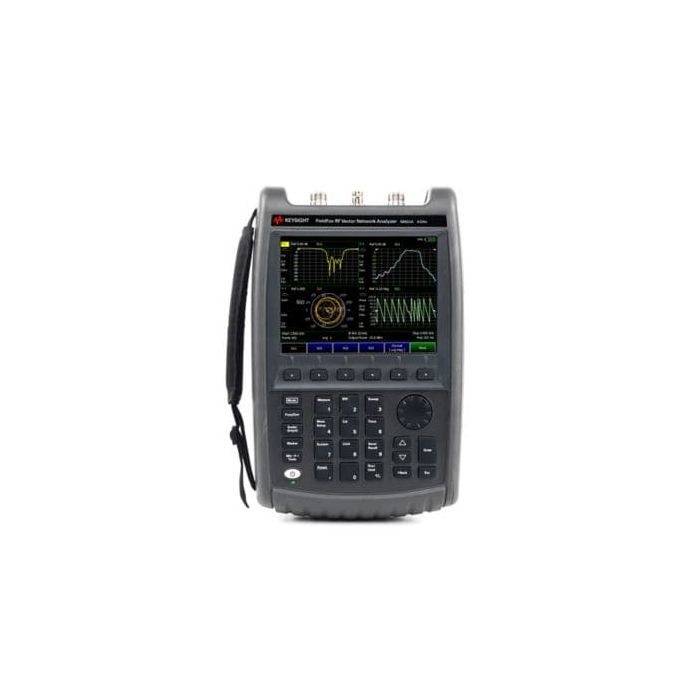

FieldFox RF vector network analyzer
N9923A is a portable battery-operated RF vector network analyzer; N9923A includes a full 2-port network analyzer, cable and antenna tester, distance-to-fault tester, power meter, and 1- and 2- channel vector voltmeter.
Contact us for lead time
Contact our team for stock availability and product options.
Price
£6,961.92
Experience Keysight’s handheld precision equipment
As a Keysight Premium Partner, our test equipment experts offer product demos, trial units and technical advice, giving you the opportunity to try before you buy. And with supported pricing and some products available within just 5 working days – APC is the partner of choice for all your Keysight test equipment.
| Attribute | Value |
|---|---|
| Whats Included |
|
| Number of Built In Ports | 2 ports |
| Dynamic Range | 100 dB |
| Output Power | Up to 5 dBm |
| Trace Noise | 0.008 dB rms |
| Instrument Type | Vector Network Analyzer |
| System Features | GPS Receiver - External Only |
| Additional CAT / VNA Based Features | QuickCal (Subset), Vector Voltmeter, Mixed-Mode S-Parameters |
| Additional SA Based Features | Built-In Power Meter |
| Key Features |
|
| Applications | S-Parameters, Distance-To-Fault, Cable Trimming, Return Loss, Insertion Loss/Gain, Power Measurements |
| Maximum Frequency | 4 or 6 GHz |
| Minimum Frequency | 2 MHz |
| Series | FieldFox Handheld RF and Microwave Analyzers |
| Product Type | Vector Network Analyzer |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
