N9935C

N9935C

N9935C

Keysight Technologies

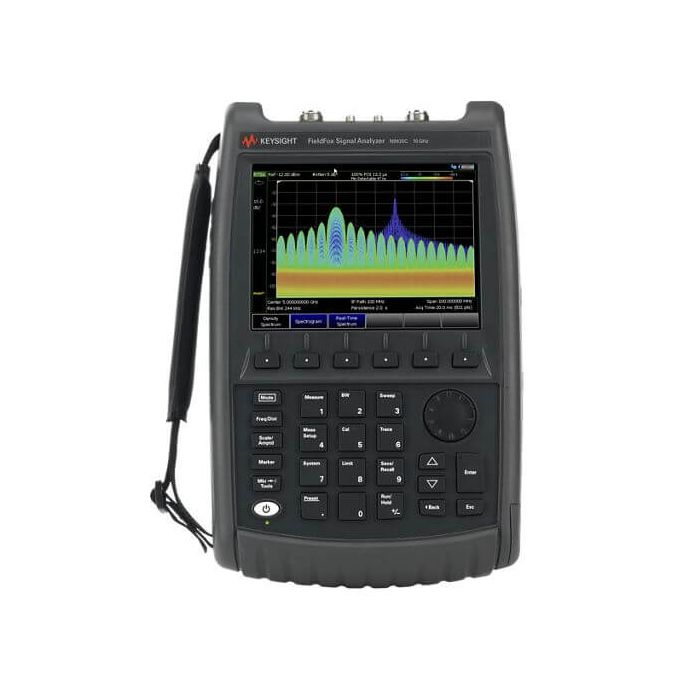

N9935C FieldFox C Handheld Microwave Spectrum Analyzer, 10 GHz, A lightweight, durable, and software-defined spectrum analyzer.

Unleash your analysis potential with the N9935C high-performance spectrum analysis from 3 kHz to 10 GHz.

The Keysight FieldFox is a lightweight and portable battery-powered analyser designed for making measurements for RF devices like Cables, Antennas, Filters, Amplifiers, and Signal/Spectrum Analysis. It is the industry's most flexible configured RF handheld. You can create your specialised handheld analyser solution by selecting FieldFox options and features to address cable and antenna test (CAT) spectrum analysis (SA) or vector network analysis (VNA) real-time spectrum analyser and over-the-air digital demodulation analysis required for your application.

Always ready to make RF measurements, the newly introduced C-Series analyser, N9912C in particular, makes the FieldFox a truly software-defined instrument.

Key Features:

  • Capture elusive signals with up to 120 MHz gap-free, real-time bandwidth.
  • Make accurate spectrum analyzer measurements (± 0.3 dB) without warmup.
  • Perform over-the-air measurements for 5G NR and LTE.
  • Use GPS/GNSS for geolocation and timestamping.
  • Carry one lightweight unit at 3.4 kg (7.4 lb).
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Bandwidth 40 MHz
Whats Included

Base model: spectrum analyzer (SA)
AC/DC adapter
Localized power cord
Rechargeable Li-ion battery
Soft carrying case with backpack and shoulder straps
Quick Reference Guide

Bandwidth Options
  • 10 MHz
  • 40 MHz
  • 120 MHz
Applications
  • Over-the-Air LTE FDD
  • 5G NR
  • Over-the-Air LTE FDD
Software

N9935C

Phase Noise @ 1 GHz (30 kHz Offset) -113 dBc/Hz
SA Start Frequency 3 kHz
Maximum Frequency 10 GHz
Minimum Frequency 3_kHz
Minimum Frequency 3 kHz
Number of Built In Ports 2 ports
Dynamic Range >104 dBc
Measurement Functions
  • Signal analysis
  • Real-time spectrum analysis
More Information
Attribute Value
Data Sheet Click here to view
