ONM-6700-DC
ONM-6700-DC
Focus Microwaves

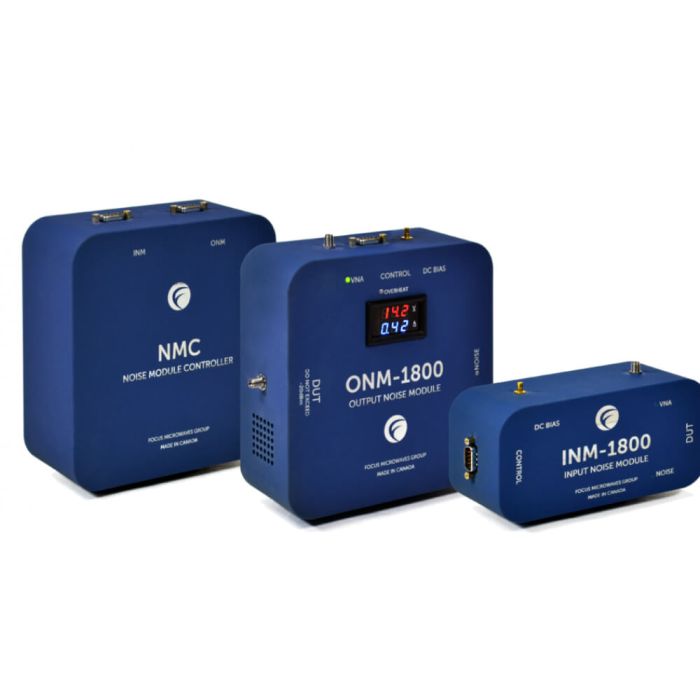

Output Noise Module (67 GHz)
Noise measurements allow the determination of the four Noise Parameters of a device (transistor). Focus’ Noise Modules integrate well with various third party noise receivers.
Noise Parameters: These are four numbers that fully describe the noise behaviour of an active or passive device (twoport) at a given frequency. For practical reasons we use the following quantities as Noise Parameters:
Focus’ noise parameter extraction routines leverage the PNA-X’s unique implementation
of the cold-source noise figure measurement technique. This specific technique requires a noise source to determine the kBG (gain-bandwidth constant) of the system and a passive mechanical tuner is used to characterize the noise receiver across both the impedance and frequency space. This step is imperative to obtain fully vector-source-corrected measurements.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Gain (dB) |
|
| Frequency | up to 67 GHz |
| VSWR Max | 3:1 |
| Connectors | 1.85 mm |
| Product Type | Output Noise Module |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
