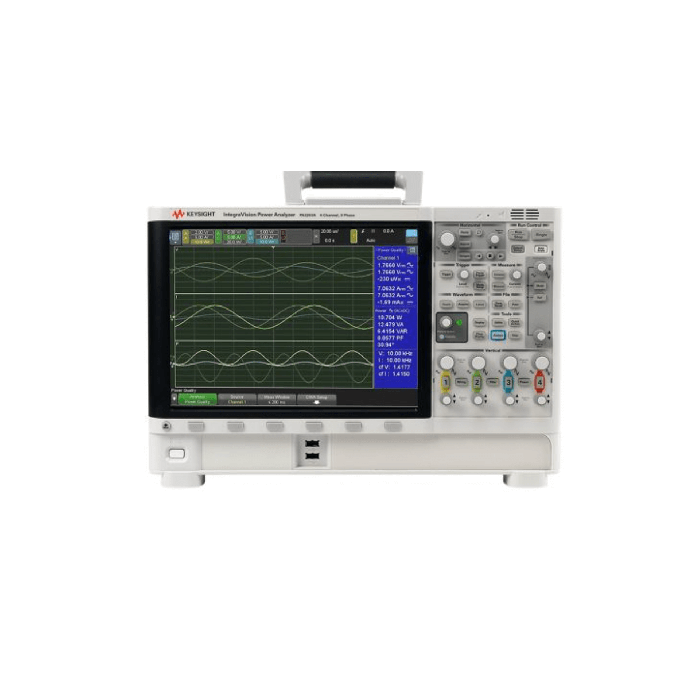

PA2203A

4 Channel IntegraVision Power Analyser

The Keysight PA2203A IntegraVision power analyser is ideal for R&D engineers who want to quickly and interactively measure AC and DC power consumption, power conversion efficiency, operational response to stimulus, and common AC power parameters such as frequency, phase, and harmonics – all with 0.05 % basic accuracy and 16-bit resolution. The PA2203A power analyser enables engineers to characterise power consumption under highly dynamic conditions with 5 million samples per second digitising speed and 2.5 MHz bandwidth.

Insight – Precision power measurement and real-time waveform visualisation give true insights into energy consumption and performance.

Familiarity – Thanks to a user interface based on a familiar oscilloscope use model, you experience a short learning curve; if you can use an oscilloscope, you can use a Keysight IntegraVision power analyser.

Ease of Connection – All inputs are isolated from each other and from the chassis ground, allowing for ease of connection without the need for differential probes or the danger associated with floating a ground-referenced instrument.
