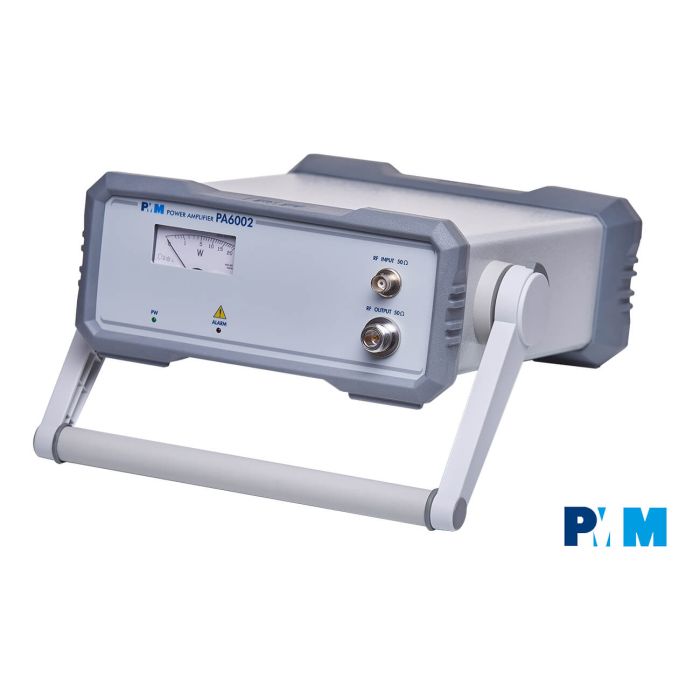

PA6002
PA6002
Narda Safety Test Solutions
Power Amplifier 9 kHz – 230 MHz up to 15W
The PA6002 power amplifier serves to boost the output power of RF signals, operating effectively within the frequency range spanning from 9 kHz to 230 MHz.
With its capability to amplify signals within this specific band of radio frequencies, it becomes a versatile tool in various applications requiring enhanced signal strength.
With a maximum output level of 15 watts, the PA6002 significantly augments the power of the input signal, providing substantial amplification to meet the demands of different scenarios.
Its versatility extends to a range of potential applications, including driving EMC test chambers for immunity testing, amplifying signals for precise antenna measurements, and bolstering RF signals used across diverse industrial applications.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 230 MHz |
| Power Output CW | 10 W; 15 W from 150 kHz to 80 MHz |
| Harmonics Distortion | < -20 dBc |
| Power Gain | 40 dB |
| Gain Flatness | +1 dB -1,5 dB |
| Drive Level | 0 dBm (1 mW) for 10 W outpu |
| Input Return Loss | < 20 dB |
| RF Input | Zin 50 Ω, BNC female |
| Operating Temperature | 0 °C to + 40 °C |
| Operating Humidity | 0 to 90% RH (without condensation) |
| Power Supply | 85 to 264 Vac 47 to 440 Hz / 120 to 370 Vdc 60W |
| LED Indicators | Power/current limiter and temperature alarm |
| RF Output | Zin 50 Ω, N female |
| Power Indication | Analog meter, 20 W f.s. |
| Storage Temperature | -40 °C to +70 °C |
| Dimensions | 235 x 105 x 300 mm |
| Weight | 4.5 kg |
