PBR-0012
PBR-0012
Marki Microwave

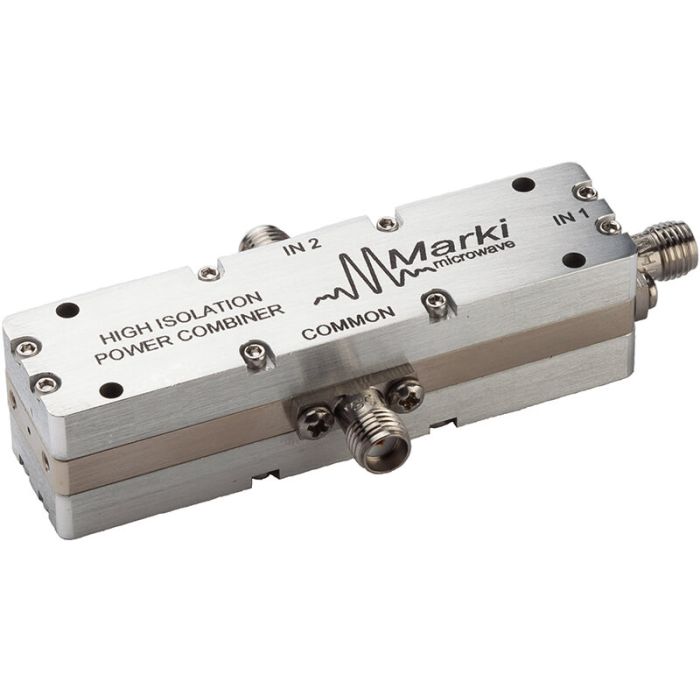

2-way High Isolation Power Combiner (300 kHz - 12 GHz)
Marki high isolation power combiners feature a unique hand tuned construction that allows typical isolation of better than 30 dB from kHz to microwave frequencies. The have a nominal insertion loss of 6 dB and are suited for any application that requires high isolation power combining, including two-tone measurements and combining of signals with dramatically different power levels.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Download The Marki Microwave Product Brochure
View Marki Microwave's full product range of RF, Microwave & mmWave Components Bare Die, Surface Mount and Connectorised DC to 140GHz.
| Attribute | Value |
|---|---|
| Key Features |
|
| Isolation | 35 dB |
| Maximum Frequency | 12 GHz |
| Minimum Frequency | 300 kHz |
| Product Type | High Isolation |
| Applications |
|
| RoHS | Y |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
