PicoVNA 108

PicoVNA 108

Pico Technology

8.5 GHz Low-cost, professional-grade Vector Network Analyser for both lab and field use

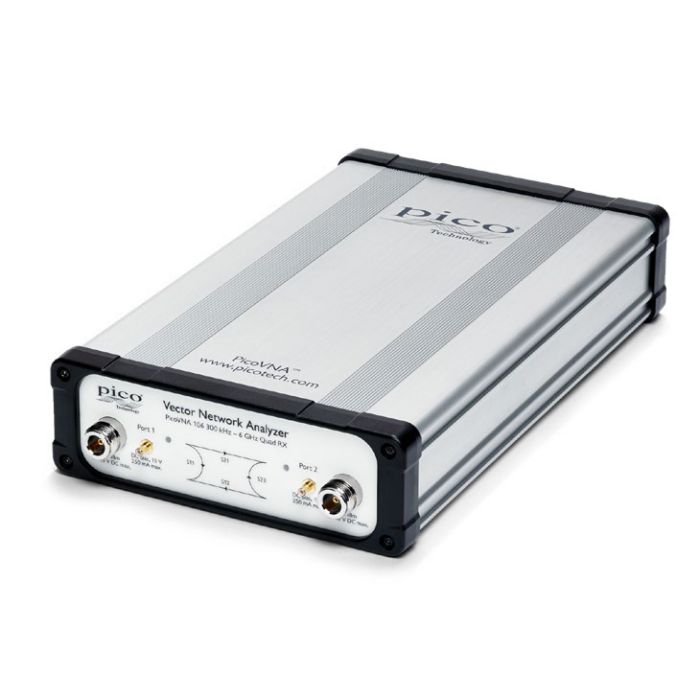

main product photo

PicoVNAs are all UK-designed, professional USB-controlled, laboratory-grade vector network instruments of unprecedented performance, portability and value for money.

Despite their simple outline, small footprint and low cost, the instruments boast a four-receiver architecture to minimize the uncorrectable errors, delays and unreliability of internal transfer switches.

PicoVNA Series Product Highlights:

  • 300 kHz to 6 or 8.5 GHz operation
  • Quad RX four-receiver architecture for best accuracy
  • Half-rack, small-footprint, lightweight package
  • PicoVNA 5 software: Intuitive and direct user interface
  • Guided 8/12-term, SOLT, TRL, and TRM calibrations including unknown-through.
  • Male and female SOLT and automated E-Cal calibration standards.
  • Save on trigger for high-speed device profiling (PicoVNA 108)
  • Dual-frequency mixer measurements with VSWR correction (PicoVNA 108)
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features

PicoVNAs are all UK-designed, professional USB-controlled, lalaboratory-gradeector network instruments of unprecedented performance, portability and value for money.

Despite their simple outline, small footprint and low cost, the instruments boast a four-receiver architecture to minimize the uncorrectable errors, delays and unreliability of internal transfer switches.

PicoVNA® Vector Network Analyser Highlights

  • 300 kHz to 6 or 8.5 GHz operation
  • Quad RX four-receiver architecture for best accuracy
  • Half-rack, small-footprint, lightweight package
  • PicoVNA 5 software: Intuitive and direct user interface
  • Guided 8/12-term, SOLT, TRL, and TRM calibrations including unknown-through.
  • Male and female SOLT and automated E-Cal calibration standards.
  • Save on trigger for high-speed device profiling (PicoVNA 108)
  • Dual-frequency mixer measurements with VSWR correction (PicoVNA 108)
Whats Included
  • PicoVNA vector network analyzer (Calibrated)
  • PS010 Universal input 12 V 4.5 A output power supply
  • PA153 PicoVNA carry case
  • DI111 PicoVNA software and documents on USB flash drive
  • Two TA486 PicoWrench RF combination wrench (For N, SMA, PC3.5 and K-type connectors)
  • MI106 Pico blue USB 2.0 cable 1.8 m
Dimensions 286 mm L x 174 mm W x 61 mm H
Sweep Time High speed, 5500 dual-port S-parameters per second
Applications
  • Test automation, including multiple VNA control and measurement
  • Manufacturers needing to integrate a reflectometry or transmission measurement core
  • Inspection, test, characterization, and calibration in the manufacture, distribution, and service center industries:
    • Electronics component, assembly, systems, and interface/interconnect ATE (cable, PCB, and wireless)
    • Material, geological, life-science, and food sciences; tissue imaging; penetrating scan and radar
  • Broadband cable and harness test and matching at manufacture and installation, and fault-over-life monitoring
  • Antenna matching and tuning
Dynamic Range
Software

PicoVNA 5:

  • Intuitive and direct user interface (UI)
  • Multiple time domain views
  • Independent workspaces unique to PicoVNA 5
  • Magnify, Zoom Frequency or Time Segment plot detail
  • User-defined interpolations
  • Multiple and fast remote access paths
  • De-embed port interfaces

PicoVNA 3:

Still available and fully supported.
Optional Accessories
  • Cal and check standards
  • Power supplies
  • RF cables and adaptors
  • Network Metrology Training Kit
Trace Noise
More Information
Attribute Value
Data Sheet Click here to view
