PMM 3030 EMI SIGNAL GENERATOR 9 kHz - 3Hz
PMM 3030
Narda Safety Test Solutions

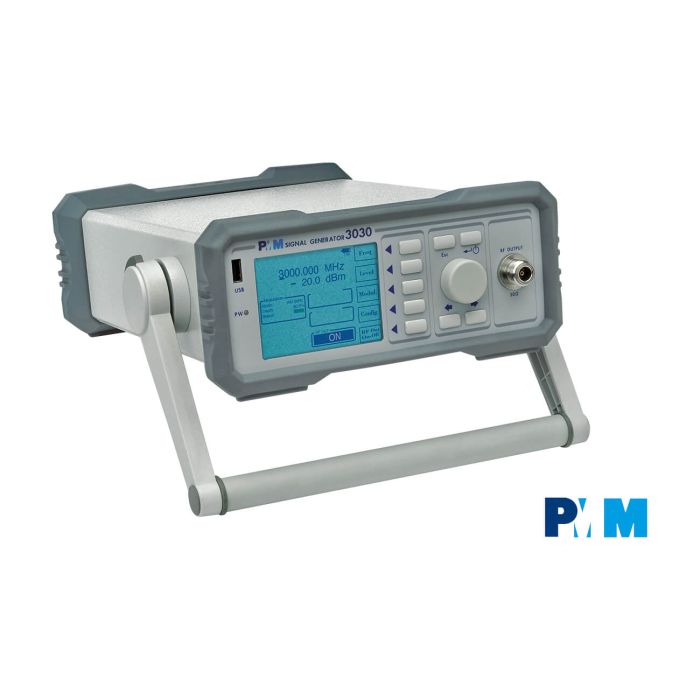

PMM 3030 EMI Signal Generator 9 kHz - 3Hz
Narda offers two powerful Wideband RF Signal Generators, designed with an innovative approach and using state-of-the-art components, ideal for a wide range of test applications, particularly for EMC immunity testing.
These generators have been developed with a philosophy that places particular emphasis on ergonomics and user-friendliness, offering a versatile and high-quality solution.
A distinctive feature of these RF generators is their portability, made possible by the presence of a built-in rechargeable battery. This allows users to conduct tests in various settings without being constrained by external power sockets, making the user experience truly flexible and convenient.
The user interface is designed to be intuitive and easy to use, with a bright and clearly readable display and ergonomic function keys. All settings can be easily adjusted via the front panel, thanks to the presence of a keypad and rotary knob.
Additionally, Narda RF generators feature internal AM and pulse modulation, offering additional options for customizing the generated signals. With the integrated RS232 and USB interface, it is also possible to control and monitor the generators via external devices, increasing flexibility and integration with other measurement instruments.
Currently, Narda generators are available in two versions: the 3010 model, covering the range from 9 kHz to 1 GHz, and the 3030 model, which extends the coverage up to 3 GHz, thus providing a solution suitable for various testing and measurement needs.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency |
Range: 9 kHz to 3 GHz (*) Resolution: 1 kHz Accuracy: ± 10 ppm (f> 10 MHz) |
| Level |
Range: - 107 to + 10 dBm Resolution: 0.1 dB Accuracy: ± 1 dB dB (Level > -30dBm) Output impedance: 50 Ω Connector: N (female) |
| Spectral Purity |
Harmonic: < - 30 dBc @ 0 dBm f > 1 MHz |
| AM Modulation |
Internal: 2 Hz, 50Hz, 400Hz, 1 kHz - from 10% to 90% External: 2 Hz to 10 kHz - from 10% to 90% Input impedance: 600 Ω Connector: BNC female |
| Pulse Modulation |
Internal: 1 Hz, 100 Hz, 200 Hz, 1 kHz (duty cycle 1/2) ON/OFF ratio > 40 dB @ 0 dBm: 100 Hz (duty cycle 1/24), 200 Hz, 217 Hz (duty cycle 1/8) |
| Remote Control System Interface | RS-232, USB 2.0 (rear), USB 2.0 (front: only for future implementation), High Speed Optical Link (2 channels: only for future implementation); User Port; IEEE-488 (GPIB) external option |
| Operating Temperature | 10 °C to + 40 °C |
| Power Supply | 10 - 15 Volt DC, 2,5A; Li-Ion interchangeable battery (3 h operations, average) (available only for the version 3030-02) Standard AC-DC adapters |
| Dimensions | 235 x 105 x 335 mm |
| Weight |
3.5kg (without battery) 4.3Kg (with battery) |
| Display |
320 x 240 pixel; 16 grey levels Graphical Resolution Units: dBm, dBµV |
| Connector | DB9, USB-B, USB-A, Optic Fiber, DB-15, IEEE-488 |
| User Port | RF Off, RF On |
