M1963
M1963
Enercon Technologies Europe
AC-DC Power Supply Single Phase

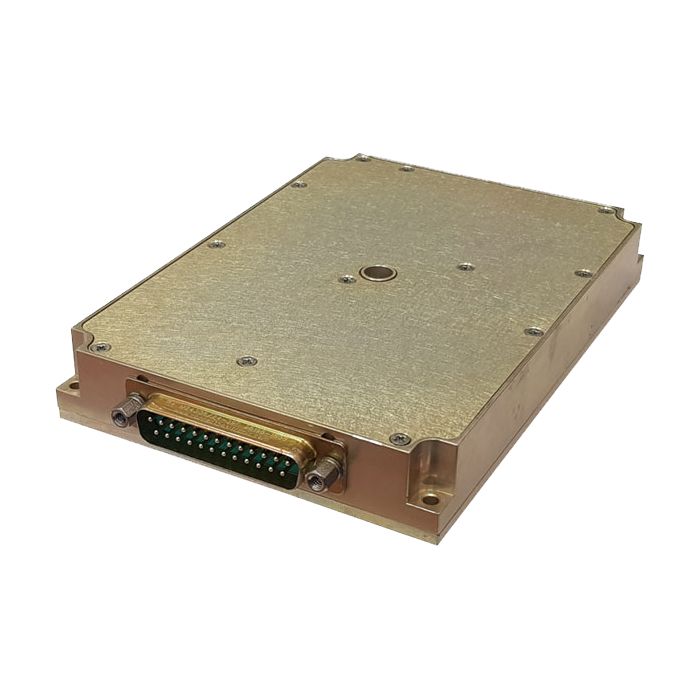

The M1963 is a ruggedised military grade AC-DC Power Supply Single Phase with an input voltage range of 85-265VAC | Single Phase | 50/60/400Hz and Three output(s) with an output power rating up to 130W. Custom outputs are available upon request.
This power supply is designed to meet the following standards:
- MIL-STD-810
- MIL-STD-461
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form Factor | Baseplate Mount |
| Product Type | Power Supply (Converter) |
| Standards |
|
| Output Power | 130W |
| Fixed Switching Frequency | 450kHz |
| Power Factor | 0.96 |
| Power Efficiency | 0.83 |
| Filters | EMI Filters Included |
| Output Range |
|
| Input | 85-265VAC | Single Phase | 50/60/400Hz |
| Operating Temperature | -40°C to 85°C |
| Outputs | Triple Output |
| Dimensions | 131.83 x 93.98 x 20.07 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
