M7419
M7419
Enercon Technologies Europe
DC-DC Power Supply

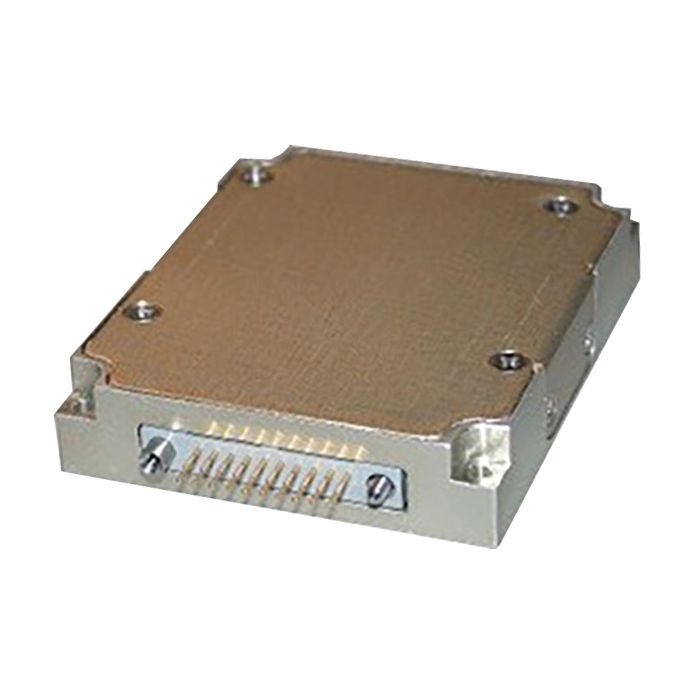

The M7419 is a ruggedised military grade DC-DC Power Supply with an input voltage range of 18-50VDC and One output(s) with an output power rating up to 50W. Custom outputs are available upon request.
This power supply is designed to meet the following standards:
- MIL-STD-1275
- MIL-STD-704
- MIL-STD-810
- MIL-STD-461
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Form Factor | Baseplate Mount |
| Product Type | Power Supply (Converter) |
| Standards |
|
| Output Power | 50W |
| Fixed Switching Frequency | 250kHz |
| Power Efficiency | 0.8 |
| Filters | EMI Filters Included |
| Output Range |
|
| Input | 18-50VDC |
| Operating Temperature | -55°C to 85°C |
| Dimensions | 59.69 x 50.8 x 12.45 mm |
| Outputs | Single Output |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
