ACB Space Qualified Printed Circuit Boards
Quick turnaround PCBs with technical support and reliability testing
APC’s High-Reliability components team can support your projects with Advanced Circuit Board’s range of printed circuit boards. Designed for use in the most demanding environments, ACB’s solutions comprise the latest manufacturing technologies and high-performance materials to provide mission-critical success.
Reliably tested to ensure the highest quality
• 100% Electrical probe-tested, COC, Cross-section and Impedance
• Measurements, reliability tests and lifetime simulations
• FAI-reporting, full IPC class 3 inspection
• Group 6 and IST testing on request
Materials
• FR4, FR4 High Tg, FR4 Low CTE, polyimide-flex, polyimide-glass, CIC
• High-performance, high-speed, and halogen-free materials
• Copper and aluminium heatsinks
Specialist Technologies
• Laser direct imaging, led direct imaging, laser drilling, automatic optical inspection
• Lead and halogen-free PCB's, resin plugged μvias, thermal and CTE management
• Cu filled and stacked microvia, multiple pressings
ACB Design Capabilities
• Rigid, flex-rigid and flex multilayer printed circuit boards
• Analog, digital, high-speed digital and RF
• European manufacturer with production plants in Belgium and France
• Focus on high-tech markets for small series and prototypes in quick turnaround
• NADCAP, ESA and AS/EN9100 certified

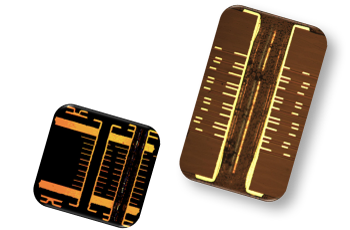

ACB Capability Examples
5 layers μvia with 3 layers
Cu filled and stacked
Back drilling
CTE Control: 4 layers CU
Invar CU in blind runs
18 layer HDI: 3 + 12 + 3
4 layers Cu filled and stacked μvia
18 layer with 4 levels stacked
Cu filled 75 μm μvia
20 layer Flex Rigid with 18 flex layers
HDI with thermal management 2 x 210 μm Cu
Get in touch with one of our experts
When you need assistance with the design of your high-end PCBs or you would like to double-check the manufacturability of your design, speak with a member of our high-reliability team. ACB is able to supply quick-turn circuit boards with some of the fastest lead times in the industry. Ask our team today.
ACB is qualified by several European Space key players and by ESA (European Space Agency).
