PZ2131A

High Channel Density SMU Having 5 ch/Module and Saving Space at a Low Cost per Channel for a Wide Range of Applications Requiring Numerous Precision Power Supplies

PZ2130/31A from the Keysight PZ2100 Series

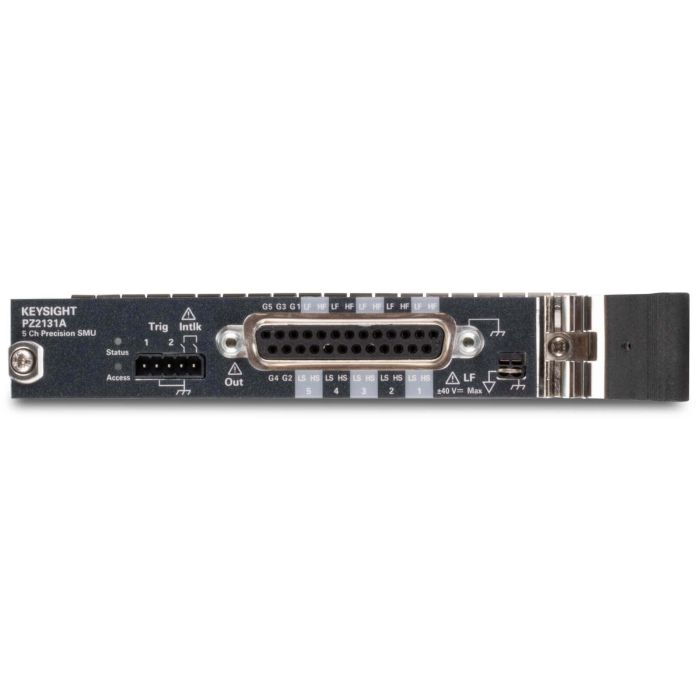

The Keysight PZ2130A and PZ2131A are high-channel density precision SMUs with 5 channels per
module. They allow for the integration of up to 20 SMU channels into valuable 1U height, full width, rack space and saving space at a low cost per channel for a wide range of applications requiring numerous precision power supplies. The channels can work synchronously in the module and support accurate measurement in the range up to 30 V / 500 mA with resolution down to 6 μV / 10 pA (100 pA for the PZ2130A).

The narrow pulse function with a width down to 100 μs and fast Digitiser Mode with a sampling rate up to 500 kSa/s allow the PZ2131A to expand the conventional static DC measurements to emerging dynamic measurements. Their seamless current measurement ranging function eliminates the time it takes to change the range and expands the dynamic range to cover multiple measurement ranges, which reduces test duration.

These capabilities make the PZ2130A and PZ2131A suitable for applications that require numerous precision power supplies, such as semiconductor reliability tests, Optoelectronics, and integrated circuit (IC) tests. The Keysight PX0107A low noise filter adapter lowers its voltage source noise level down to 25 μVrms, which makes it suitable for noise-sensitive applications such as quantum computing as well.

PZ2130/31A Key Benefits:

• Unprecedented high channel density (20 Ch in 1U rack height, full width at max.)
• Low cost/ch for multi-ch applications (≥5 Ch)
• Narrow pulse down to 100 μs pulse width
• Fast Digitizer Mode with sampling rate at 500 kSa/s
• Low voltage source noise down to 25 μVrms with PX0107A
