QH-0R518
QH-0R518
Marki Microwave

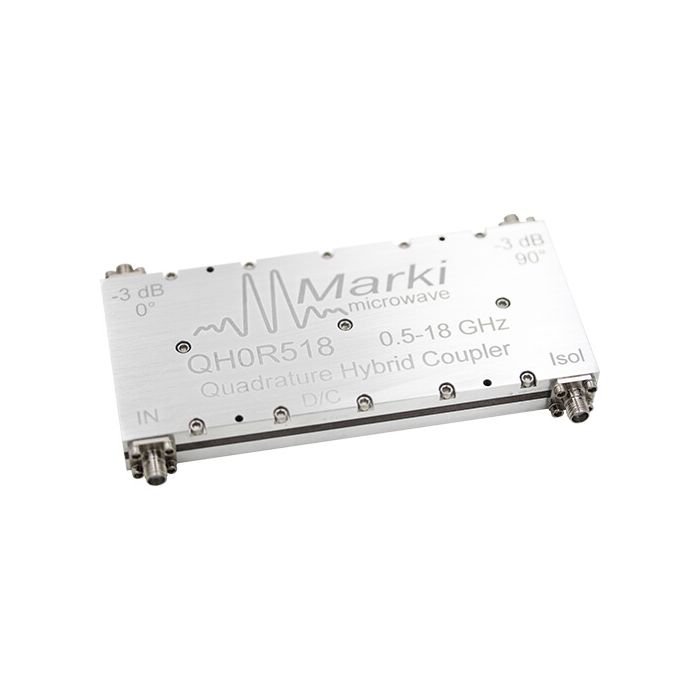

3 dB Quadrature 90° Hybrid Coupler (0.5 - 18 GHz)
The QH-0R518 is a 0.5-18 GHz, multi-purpose broadband 3dB quadrature hybrid. The multisection tri-plate stripline design exhibits excellent amplitude balance with broadband quadrature phasing (90o) between the output ports.
Applications include single sideband upconverters, image rejection downconverters, IQ modulators, balanced amplifiers, microwave correlators and microwave Butler matrices.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| RoHS | Y |
| Key Features |
|
| Isolation | 20 dB |
| Maximum Frequency | 18 GHz |
| Minimum Frequency |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
