R20IK3S-RKA2ML
R20IK3S-RKA2ML
Winmate

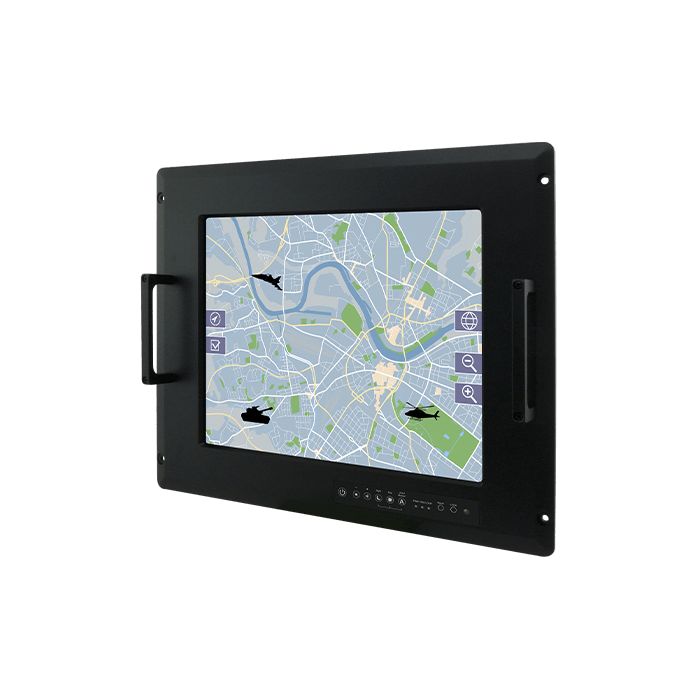

20.1" Intel® Core™ i5 Military Console Rack Panel PC
To meet the military and defense regulatory requirements, all Winmate's Military Console Rack Panel PCs are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standard.
Selected models support the NVIS MIL-STD-3009 night vision. Winmate performs in-house reliability test to ensure optimal performance in harsh military environments.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Size | 20.1 inches |
| Power Rating |
|
| Operating System |
Windows 10 IoT Enterprise (Optional)
Linux Ubuntu 18.04 (Optional) |
| Resolution | 1600x1200 |
| Processor |
Intel® Core™ i5-7200U (3M Cache, up to 3.10 GHz)
Intel® Core™ i5-7300U (3M Cache, up to 3.50 GHz) |
| Storage |
1 x M.2 2242 SSD 64GB
M.2 2242 SSD up to 512GB (Optional) |
| Security | TPM 2.0 |
| Contrast Ratio | 1400:1 |
| LAN | 2 x RJ-45 |
| Mounting | Rack Mount / Panel Mount / VESA Mount |
| Certifications | CE, FCC |
| Serial Port |
1 x RS232/422/485 (Default RS232)
1 x RS232 (Optional) |
| USB | 2 x USB 3.0 |
| Cooling system | Fanless Design |
| Enclosure | Metal Housing with Aluminum Bezel |
| Video | 1 x HDMI (Optional) |
| Ethernet Controller |
|
| Button |
8 Key OSD Control Pad:
|
| MIL-STD 810F/G |
|
| MIL-STD 461E/F |
|
| Operating Humidity | 10% to 95% RH |
| Touch / Glass | Protection Glass |
| View Angles | 85,85,85,85 |
| Panel Brightness | 330 nits |
| Accessories |
|
| Storage Temperature | -10°C~60°C |
| Operating Temperature | 0~50°C |
| Memory |
1 x SO-DIMM, DDR4 2133 MHz, 4GB
8GB (Optional) 16GB (Optional) |
| Dimensions | 482.6 x 399.3 x 75 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
