5702 sMON

5700 sMON software is a complete, Windows compatible, remotesoftware package for real time control, display and management ofenvironmental monitoring systems, i.e. a network of radiation monitoringunits based on Ethernet or serial connections.

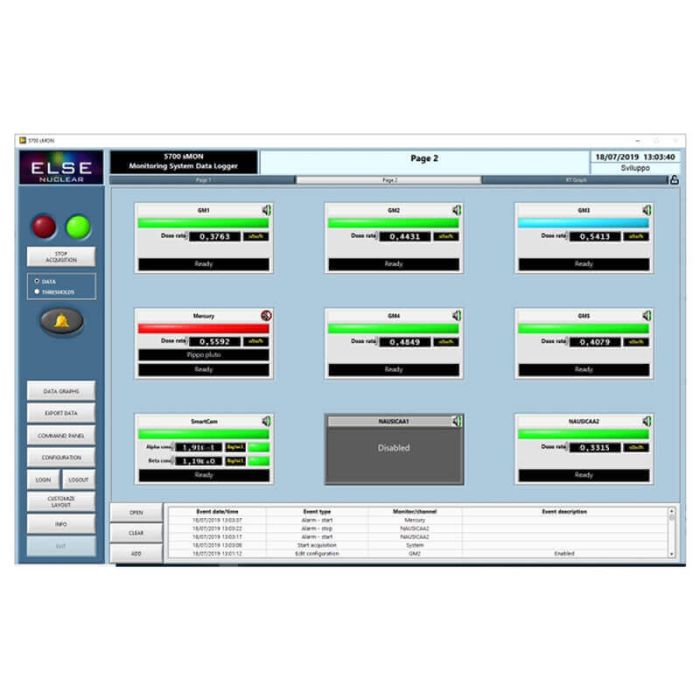

The graphic interface presents four management windows: Main,Parameters, Command and Graphics. Every one of these has virtual keysand selectors available for user friendly access to the functions.
The data display and status monitoring of the instrument network are performed in real time by 5700 sMON, installed on a host PC.

Dose rate and maximum instantaneous rate values are saved every minuteon a daily archive file. Every 10 minutes, every hour and every day, the average rates are saved and stored too. The archives can be shared on alocal LAN network.

A log of the system status is automatically generated and saved, including alarm/pre-alarm/malfunctioning events and configuration adjustments.

Data can be optionally stored to a Microsoft SQL Server RDBMS (Relational DataBase Management System) which allows retrieving datafrom network nodes by means of standard SQL queries.
The RDBMS version also acts as a Network Server providing data simultaneously tomaximum five 5700 sMON Network Clients, which are able to view real-time and historical data, alarms and failures, and interact with some parameters of the monitors through the Server.

5700 sMON provides three access levels to its functions: Operator, Experienced Operator, Administrator. Experienced Operator and Administrator functions are password-protected.

5700 sMON logs all important events: application start/stop, acquisition start/stop, beginning/ending of radiological alarms, failure events, muting, change of thresholds, change of configuration settings.

Key Features

• Compatible with all detectors
• Highly reliable acquisition & processing unit
• Advanced user interface
• 2-lines LCD display
• Real-time data management
• Internal and exportable data archive
• Luminous/acoustic status signalling
• Data communication to host PC: ETH or Serial
• External keyboard for parameters setting
