Radiation Portal Monitor For Vehicles
The GALILEO radiation portal monitor is designed to automatically scan the load of vehicles (trucks or rail wagons on weighting stations) passing through its structure, and to detect any radioactive contamination due to the presence of gamma emitting radionuclide.
The standard 2UV configuration is composed of 2 large plastic scintillator detectors, an electronic desktop rack and a PC control console.
A 4UV configuration is also available, employing 4 scintillators, as well as other customisable layouts.
>The count rates acquired by the detectors are continuously compared to the pre-set alarm thresholds; if a threshold is exceeded, the system immediately gives a warning to the operator through acoustic and luminous indications.

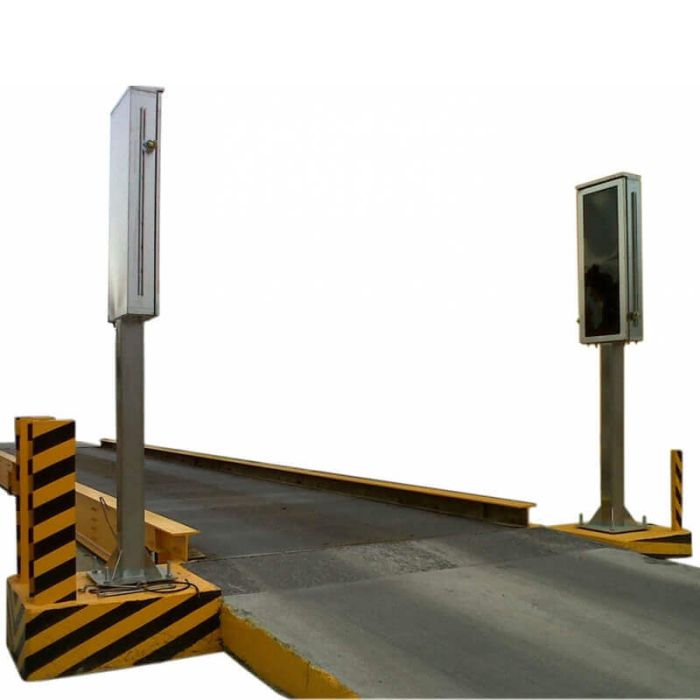

The detectors are installed in a portal configuration: two mechanical structures are installed one at each side of the passageway. The number of detectors can be adapted to the expected vehicle type or measurement geometry. Each detector is composed of a high-efficiency plastic scintillator facing the passageway, coupled with a PMT and the electronics for HV and signal processing. The detectors are properly shielded to lower the environmental background contribution.
A set of transit sensors detects the vehicle’s transit and calculates its speed.
Key Features
- Configurable layout according to vehicle type
- Dynamic background evaluation
- Large, high-sensitivity plastic scintillators
- Efficiency per detector (Cs-137): 150 kcps/µSv/h
- False alarm rate: 1:10'000
- Pass-through speed control
- Automatic e-mail with measurement report
- Vehicle plate reader or camera for picture acquisition
- Digital outputs for external devices
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Energy Range | 35 KeV - 2 MeV |
| Configurations | GALILEO radiation portal monitor can be arranged and configured changing the detector number and their installation geometry: |
| Accessories |
Cs-137 point source, activity < 10 kBq, for periodical quality controls Source holder for test and quality controls Plate detection kit: infrared illuminated camera for plate digital reading and archiving Vehicle identification kit: camera and software for vehicle images archiving ALU alarm unit for status signalling Traffic light: additional status indicator Neutron detection sub-system |
| Detection Unit |
Detector type: plastic scintillator Number of units: from 2 to 4 (custom configuration upon request) Volume of each unit: 25 l Surface of each unit: 5000 cm Depth: 5 cm Transit sensors: 2 (3 in 4UV version) |
| Measurement Features |
False alarms rate: <1/10'000 Efficiency referred to Cs-137: 150 kcps/µSv/h (per detector) Maximum transit speed: settable by the user, up to 10 km/h (recommended) |
| Detector Lodging |
Maximum dimensions (WxHxD): 734 x 1483 x 222 mm Material: stainless steel, with plexiglass windows Protection grade: IP65 PMMA window: 5 mm Lead shielding on external sides: 10 mm Total weight (each): 171 kg |
| Electronic Desktop Rack |
Housing power supply, acquisition/counting electronics, relays for digital outputs management, and control console connection interface Up to 5 programmable 24V digital outputs to command external devices, e.g. barriers, traffic lights, interlocks, alarm indicators Statuses management: 5 relays NO for digital outputs |
| Mechanical Structure |
Housing the large-surface plastic scintillators and the transit sensors Built for outdoor installations, with IP65 protection grade Designed to facilitate maintenance operations of the internal elements Support columns height defined according to the installation site and the type of vehicles to be monitored (trucks of different dimensions, wagons, etc.) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
