ELSE NUCLEAR
Radiation Portal Monitor For Hospital Waste

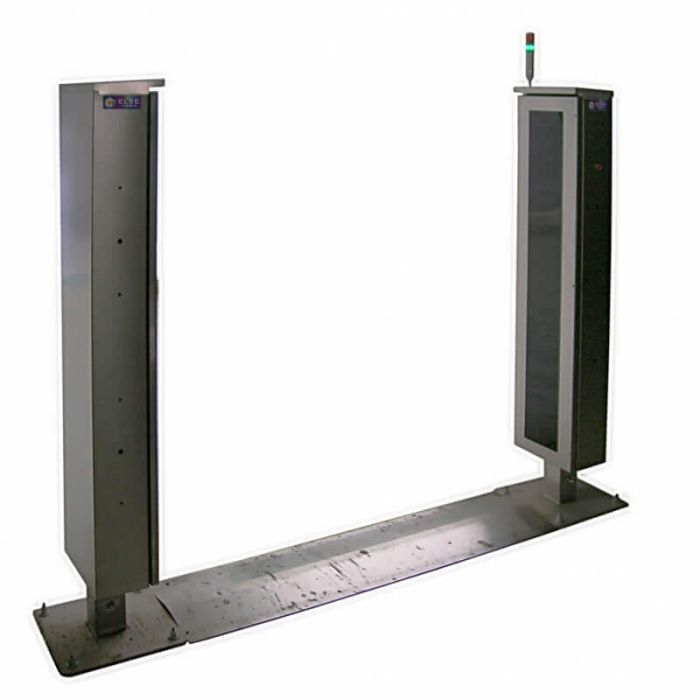

The MHOS HWM-P15 radiation monitor is designed to perform automatic gamma contamination measurements on the materials passing through the transit area defined by its portal-shaped structure.
The main application of MHOS HWM-P15 is to measure the radioactive contamination level in hospital waste.
When the pre-set threshold is exceeded, the system software activates a luminous and acoustic alarm, and generates a measurement report that is saved in the control console (panel PC).
Each of the two columns hosts a plastic scintillator coupled to the signal processing electronics, and a lead shielding to lower the environmental background contribution.
The MHOS HWM-P15 continuously checks the electronics' status through a self-diagnosis function. The “health status” of the system, as well as the measurement results, are displayed by the control console and by the alarm column.
According to the requirements or to the monitoring specifications, a desktop PC may be used instead of a touch-screen panel PC.
Key Features
- Fast and reliable gamma monitoring of hospital waste
- High sensitivity plastic scintillators
- Installable on the floor without plinths
- False alarm rate: 1:10’000
- Visualisation and saving of threshold-exceeding events
- Alarm column for contamination and malfunctioning warnings
- Available relays for safety devices connection (interlock, alarm indicators)
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Energy Range | 35 KeV - 2 MeV |
| Detection Unit |
Detectors: plastic scintillators 1000 x 150 x 50 mm Number of units: 2 Volume of each unit: 7,5 l Surface of each unit: 1500 cm2 |
| Detection Housing |
Maximum dimensions (WxDxH): 350 x 1450 x 220 mm Material: stainless steel, with plexiglass windows Protection: IP65 Lead shielding on external sides: 10 mm thick |
| Measurement Features |
Efficiency (Cs-137): 50 kcps/µSv/h (each detector) False alarm rate: < 1/10'000 |
| Control Console |
Panel PC Autorun at the system start-up Main panel indication:
Settable alarm threshold (expressed in cps or in sigma) Acquired data chart archive and printing Password for parameters setting access |
