Emission Chambers

Emission Chambers

Durridge

Detect Radon Emissions from Objects and Surfaces

DURRIDGE offers two categories of emission chambers: Bulk Emission Chambers, and Surface Emission Chambers. Used with the RAD7 radon detector, these products make it possible to measure radon emissions from artifacts, and ground surfaces, respectively.

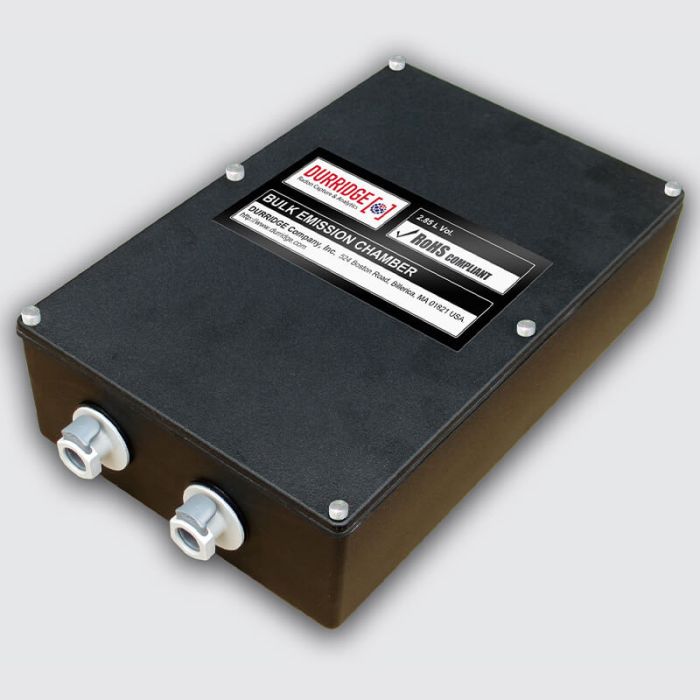

Bulk Emission Chamber

DURRIDGE’s airtight Bulk Emission Chamber is perfect for storing samples of rock, soil, and more. Two quick-release ports make it easy to connect the Bulk Emission Chamber to the RAD8 or RAD7 in a closed loop for continuous measurement. The chamber’s lid is attached with six thumbscrews, which can be easily loosened when the sample needs to be replaced.

The Bulk Emission Chamber is available in a 2.8L volume. A variety of other sizes are expected to be available soon.

Surface Emission Chambers

Two surface emission chamber accessories are offered for the RAD7 radon detector: the Soil Surface Emission Chamber, and the Hard Surface Emission Chamber. The Soil Surface Emission Chamber has a stainless steel skirt around its circumference to penetrate the ground. The Hard Surface Emission chamber has a flat base with sealant.

For soil emission measurements, the skirted chamber may be placed on the ground and stood upon, to push the steel skirt into the dirt. A closed-loop measurement may be completed in approximately 30 minutes. Open loop monitoring may be performed continuously, showing diurnal variation of soil emission and allowing the user to obtain as high a precision as desired.

For hard surface emission measurements, the chamber without the metal skirt, and with a soft seal instead, may be applied to the surface. Closed and open loop measurements may be made.

The closed loop protocol provides a quick and sensitive reading, while the open loop protocol offers increased scope for investigating variations in emission due to changes in parameters such as barometric pressure, temperature, relative humidity, and ambient radon concentration.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Dimensions

Bulk emission chamber interior dimensions: 11” x 7” x 2.5” (28 x 18 x 6.4 cm)

Bulk emission chamber interior volume: 2.8 L ± 0.05 L depending on configuration

Surface emission chamber outer dimension: 10” (25.4 cm) diameter by 1.25” (3.2 cm) deep

Surface emission chamber inner cavity dimensions: 8.5” (21.6 cm) diameter by 0.75” (2.0 cm) deep (approx 40 cubic in (660 mL)

Surface emission chamber  partition dimensions: 7.9” (20 cm) long by 0.5” (1.27 cm) wide

Hose Connectors

Bulk emission chamber: Front mounted

Surface emission chamber: Top mounted

Case Material

Bulk emission chamber: Aluminium

Surface emission chamber: ABS plastic

More Information
Attribute Value
Data Sheet Click here to view
