RF-300 9 kHz – 30 MHz
RF-300
Narda Safety Test Solutions

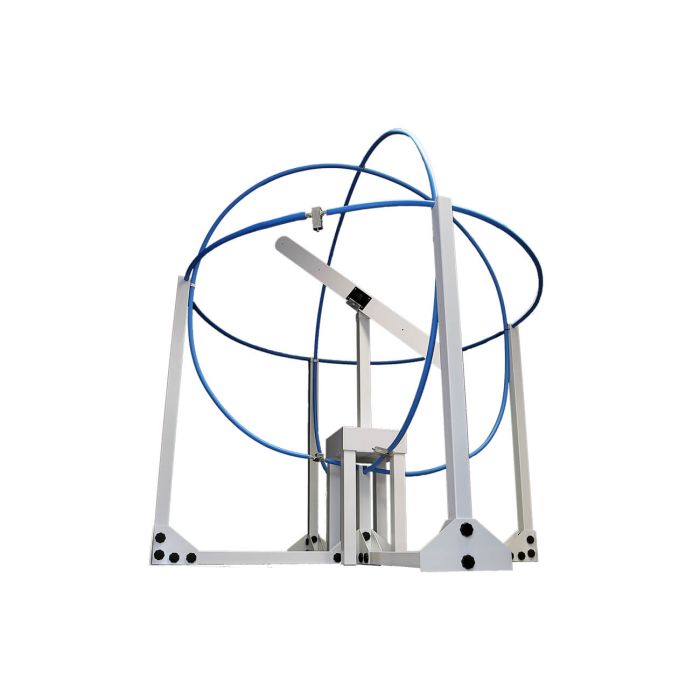

Large Loop Antenna System, EN 55015 (CISPR-15)
The RF-300 is a Large Loop Antenna System (LLAS) compliant to EN 55015 (CISPR-15) for test on Emissions of Luminaires.
Complete 3 axis system with switching unit
Antennas loop of 2 meter diameter
It can be used with any EMI receiver
Ideal companion of 9010F Digital EMI receiver (CISPR-16-1-1 full compliant)
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz - 30 MHz |
| Compliance To | EN 55015 section 9.1.1 & CISPR 16-1-4 Annex C |
| Loops | Triple independing loops |
| Loops Diameter | 2 m |
| Sensors | Inductive coupling, matched |
| Loop Selection | Switching panel unit |
| Calibration | Provided for each axis |
| Antenna Factor | According to CISPR 16-1-4 Annex C |
| Frame | Wood & plastic tubes, collapsible |
| Output Impedance | 50 Ω |
| Dimensions |
Height: 2,6 m X-Y Width: 2,1 m |
| Connector | BNC |
