RGT1100A
RGT1100A
Raditeq

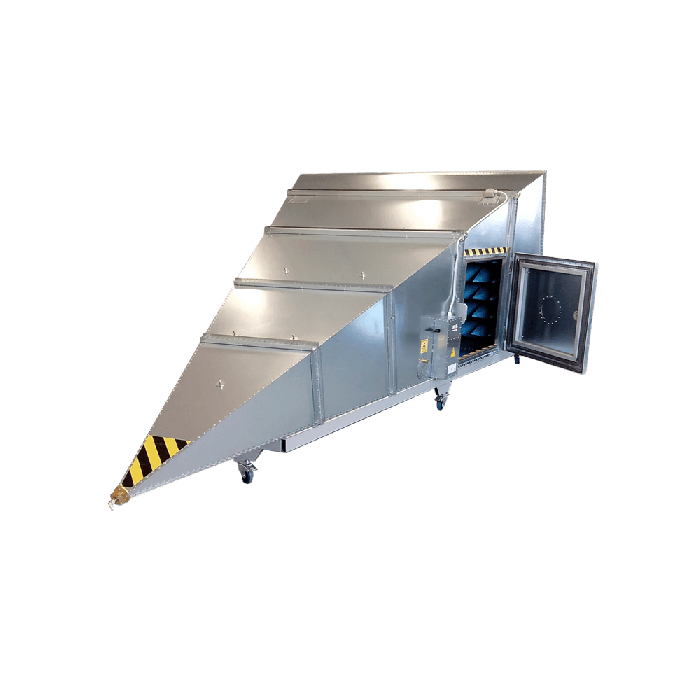

11000 mm GTEM (Gigahertz Transverse Electromagnetic) Cell for Radiated Immunity and Emissions Testing
1100mm Septum GTEM Bundle
With a septum height of 1100 mm, the GTEM bundle is an electromagnetic testing system that operates within the frequency range of 80 MHz to 6 GHz, generating a field strength of 18 V/m. It is commonly utilised for testing and evaluating the immunity of electronic devices, components and systems to electromagnetic interference (EMI).
Due to its efficient and compact design, it is a preferred choice for various applications, such as research and development, quality control and certification testing, across a range of industries including telecommunications, aerospace and defence.
GTEM Cell bundle includes:
- RadiMation® - Automated EMC test software
- RadiCentre® - 7-slot modular test system
- RadiGen® - 4 kHz – 6 GHz signal generator
- RadiAmp® - RF power amplifier
- RadiPower® - EMC power meters 9 kHz – 6 GHz
- RadiSense® - E-field probe from 9 kHz – 10 GHz
- RadiSwitch® - Coaxial relay card
- GTEM Cell – 250 – 550 – 1100 mm
- Including 19-inch rack & Power Distribution
- All required cabling
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Whats Included |
|
| Max Input Power | 1.5 kW / 2.5 kW |
| Shielding effectiveness | From 40 to 65 dB |
| Outer dimensions ( Lx W x H) | 500 x 271 x 188 cm + 25 cm trolley |
| Emissions Frequency Range | 9 kHz - 6 Ghz |
| Immunity Frequency Range | 80 MHz – 6 GHz * DC-20 GHz optional |
| Septum height | 1100 mm |
| Typical VSWR | 1:1:6 |
| Field strength | 18 V/m |
| Usable test volume (EUT space available) | 35.5 x. 33.5 x 33.5 cm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
