RM3545-01
RM3545-01
Hioki

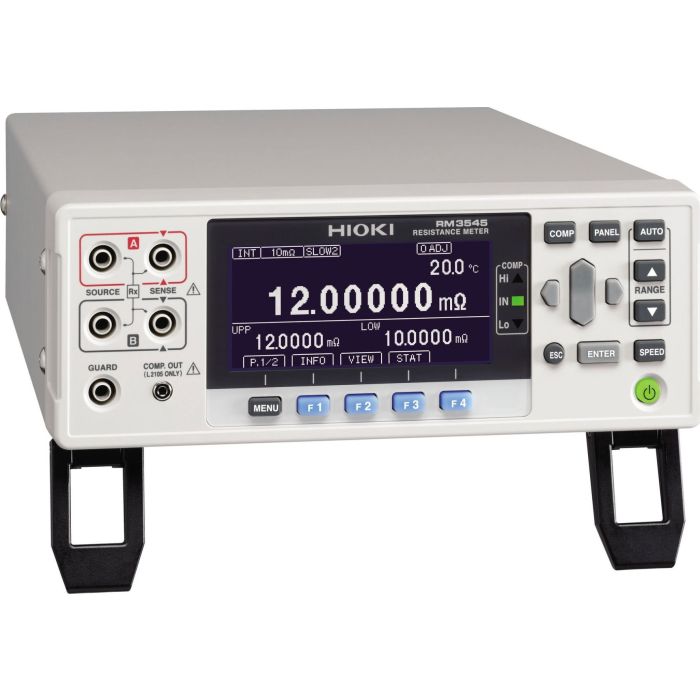

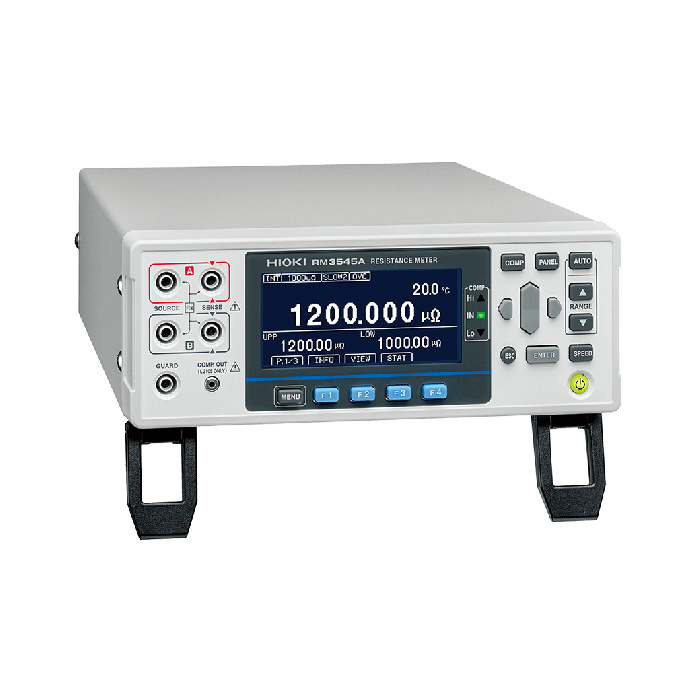

Resistance Meter - Built-in GP-IB interface
This product is available in 5-7 weeks
Featuring super-high accuracy and multi-channel capabilities
Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3545 is super-high-precision, multichannel-capable resistance meters that meet applications in advanced research and production for testing winding resistance of motors and transformers; contact resistance of power relays, switches, and connectors; and resistance of signal relays and magnetic parts.
Key Features
- 0.006% basic accuracy, 0.01 μΩ max. resolution, 1A max. testing current
- Measure from 0.00 μΩ (testing current 1 A) to 1200 MΩ
- Multiplexer Unit Z3003 (option) provides 20-channels of 4-terminal measurements for a complete assessment of multi-point signals (RM3545-02 only)
- Low-power resistance measurement with an open voltage not exceeding 20 mV
- High-speed, comprehensive productivity support delivers decisions in as little as 2.0 ms from start to finish
Contact our expert team
We work closely with our technology partners to offer customers the best
lead time and prices we can achieve.
Contact our team for the latest availability and pricing information on
0330 313 3220, or use the request a quote button below and a member
of our team will be in touch.
Price
£2,652.44
| Attribute | Value |
|---|---|
| Power Supply | 102 V to 240 V AC, 50 Hz/60 Hz, Rated power consumption: 40 VA max. |
| Included Accessories | Power cord ×1, Clip type lead L2101 ×1, temperature sensor Z2001 ×1, Male EXT I/O connector ×1, Instruction manual ×1, Application disc ×1, USB cable (A-to-B type) ×1, Spare fuse ×3 |
| Interfaces | Select from GP-IB (RM3545-01 only), RS-232C, Printer (RS-232C), or USB. Remote function, communications monitor function, data output function, memory (50) |
| Resistance Measurement Ranges |
12 mΩ (12.00000 mΩ display Max., 10 nΩ resolution) to 1000 MΩ range (1200.0 MΩ display Max., 100 kΩ resolution), 12 steps [LP ON] 1000 mΩ (1200.00 mΩ display Max., 10 µΩ resolution) to 1000 Ω range (1200.00 Ω display Max., 10 mΩ resolution), 4 steps Measurement accuracy: ±0.006 % rdg. ±0.001 % f.s. |
| Temperature Measurement Accuracy | -10.0°C to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2001 and RM3545 combined accuracy), -99.9°C to 999.9°C (analogue input) |
| Measurement Time | FAST (2.2ms) / MED (50Hz: 21ms, 60Hz: 18ms) / SLOW1 (102ms) / SLOW2 (202ms) |
| Testing Current | 3 A DC to 1 µA or less [LP ON] 1 mA to 5 μA DC |
| Open-Terminal Voltage | 22 V DC (10 kΩ range or more), 5.5 V DC max. (1000 Ω range or less) [LP ON] 20 mV DC max. |
| Multiplexer | [Only RM3545-02] Support Unit: Z3003 (Install up to 2 units) |
