ROM-6881

ROM-6881

Advantech

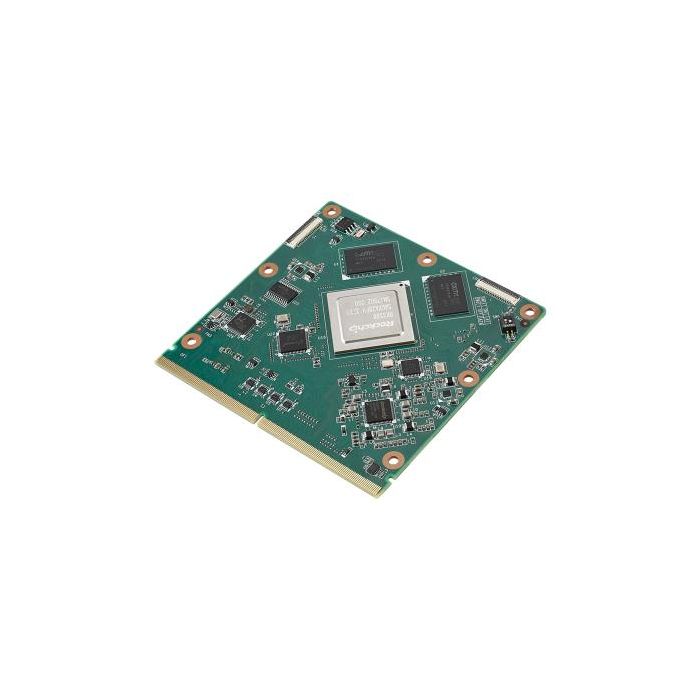

Rockchip RK3588 Cortex®-A76 and A55 SMARC 2.1 Full-size Computer-on-Module

The Advantech ROM-6881 SMARC 2.1 Computer-on-Module is powered by a Rockchip RK3588 SoC which includes Quad Arm Cortex-A76 and Quad Cortex-A55 processors, 6Tops NPU and a high-performance Arm Mali-G610 3D graphics engine.

ROM-6881 supports 8K @ 60 fps H.265/VP9 video decoding, and 8K @ 30 fps H.265/H.264 video encoding. It also provides a rich display interface supported with HDMI, DP, eDP, LVDS/MIPI-DSI to meet different display requirements. ROM-6881 offers various high-speed interfaces, including 2 x USB 3.0, 4 x PCIe 3.0, SATA 3.0, Gigabit Ethernet, CAN, and MIPI-CSI . These interfaces can meet a variety of high-rate transmission applications, Wi-Fi 6, and wireless 5G connectivity targeted at big data and other industrial applications.

The ROM-6881 is paired with the Advantech SOM-DB2510 SMARC2.1 development board for faster end-product peripheral integration and time-to-market. The reference schematics and layout checklist documentation for carrier board development will be provided along with the open-sourced Linux BSP, test utilities, hardware design utilities, and reference drivers.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • Rockchip RK3588 Arm Quad Cortex-A76 2.4GHz and Quad Cortex-A55 1.8GHz
  • Onboard 4/8GB LPDDR4 memory and 32/64GB eMMC
  • Supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding
  • Supports HDMI, DP, eDP and LVDS/DSI
  • 4 x PCIE3.0, Dual Gigabit LAN, 2 x USB3.0, USB2.0 OTG, SATA3.0, 2 x CAN, 4 x MIPI-CSI, UART
  • Support Linux Debian11 and Android13
Form Factor SMARC2.1
Supply Voltage 4.75 V ~ 5.25 V DC source
CPU Rockchip RK3588 Arm Quad Cortex-A76 2.4 GHz and Quad Cortex-A55 1.8 GHz
PCB Size 82 mm x 80 mm
Speed 2 x 10/100/1000 Mbps
Max Memory Capacity Onboard 4/8 GB LPDDR4, maximum supported is 32 GB
DP++ 1 x DP 1.4
PCI Express x4 4 x PCIe 3.0, 1 lane
SPI Bus 2
SDIO 1
Power Consumption (Idle) 8.32W @ 5V (Max), 1.34W @ 5V (Idle)
Operating Temperature 0°C ~ 60°C / -40°C ~ 85°C
Memory LPDDR4- 3733 MT/s
Watchdog HW watchdog by MCU. 1~6527s, default 60s, power on/off 1s
Product Type SMARC
More Information
Attribute Value
Data Sheet Click here to view
