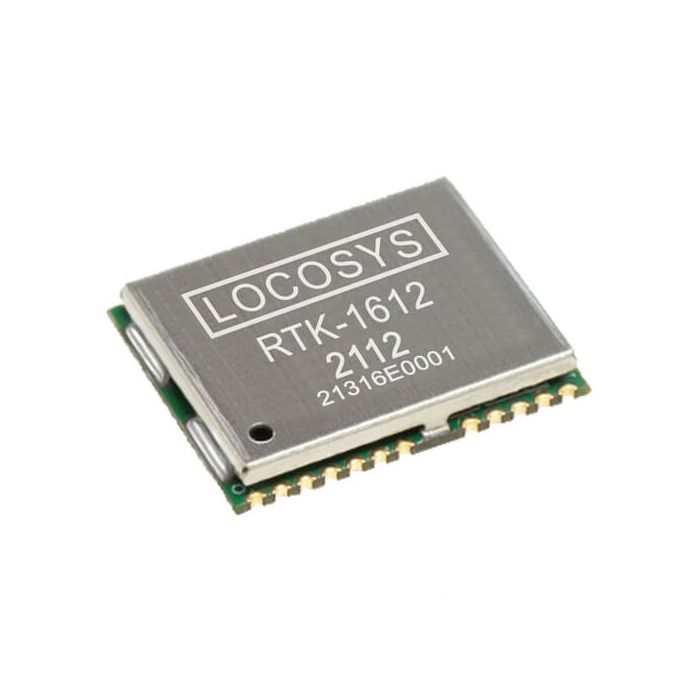

RTK-1612
RTK-1612
LOCOSYS Technology
A high-performance dual-band GNSS RTK module designed for applications requiring centimetre level positioning accuracy
The LOCOSYS RTK-1612 adopts a12nm process and integrates efficient power management architecture to perform at low power whilst delivering high sensitivity. The module supports concurrent reception of GPS, GLONASS, BeiDou, GALILEO, and QZSS to improve the availability and reliability of RTK solutions, even in harsh environments.
Ideal for applications involved in:
- Precision agriculture
- AGV robotics
- V2X / ETC / 5G stations
- Structural / land monitoring
- Offshore / marine projects
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Satellite Systems |
|
| Power (mA) | 65mA |
| VB (uA) | 44uA |
| RTK Type | Module |
| Operating Temperature | -40 ~ 85°C |
| Interface | UART |
| Dimensions | 16 x 12.2 x 2.4mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
