S5-1010-2R

S5-1010-2R

LOCOSYS Technology

GNSS module featuring high sensitivity, low power and an ultra small form factor.

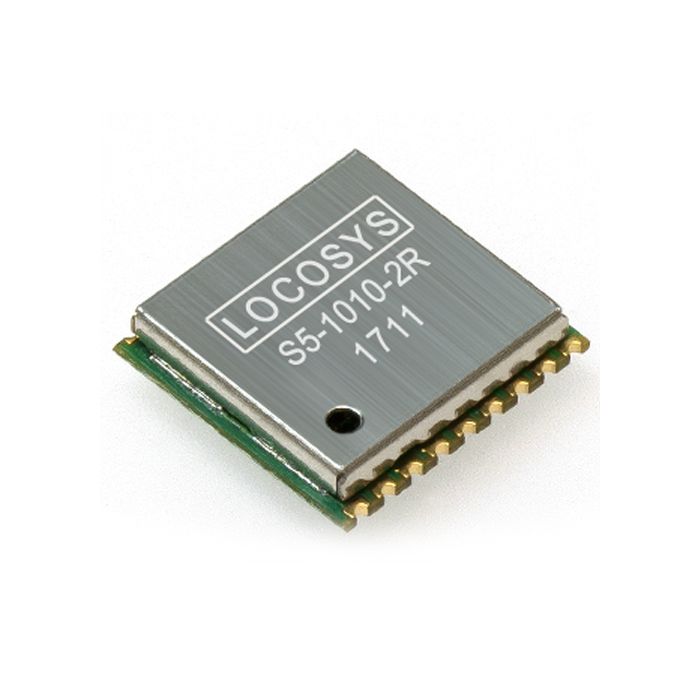

main product photo
LOCOSYS S5-1010-2R GNSS module uses new generation the state of the art SiRFstarV CSRG0530 chip and features high sensitivity, low power and ultra small form factor. This module can track multiple satellite constellations that include GPS, GLONASS, QZSS and SBAS. It is powered by SiRFstarV, and can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. Besides, MicroPowerMode allows GNSS module to stay in a hot-start condition nearly continuously while consuming very little power.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Key Features
  • SiRFstarV high sensitivity solution
  • Support GPS, GLONASS and QZSS
  • Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)
  • Support 52-channel GNSS
  • Fast TTFF at low signal level
  • Multiple interference mitigation strategies
  • Designed for 2G, 3G and 4G co-existence
  • Support Push-To-Fix Mode, Micro Power Mode and TricklePower Mode
  • Built-in LNA (on chip) and SAW filter
  • Small form factor 10.1 x 9.7 x 2 mm
  • SMD type with stamp hole; RoHS compliant
Maximum Input Voltage 3.0V - 3.6V
Module Type GNSS Module
Satellite Systems GPS, GLONASS, QZSS
Power (mA) 20mA
VB (uA) 35uA
Operating Temperature -40 ~ 85°C
Interface UART
Dimensions 10.1 x 9.7 x 2.0 mm
More Information
Attribute Value
Data Sheet Click here to view
