3DSR32M16VB2409

3DSR32M16VB2409

3D Plus

2.4V to 3.6V, 32Mbit SRAM organised as 2M x16, based on 1M x16

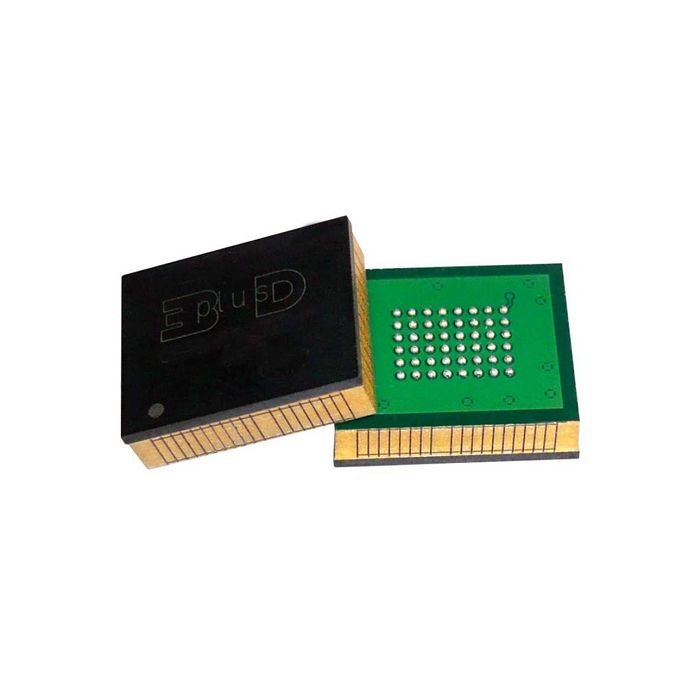

main product photo

The 3DSR32M16VB2409 is a high-speed highly integrated Static Random Access Memory containing 33,554,432 bits. It is organised as 2 banks of 16 Mbit, each bank has a 16-bit interface and is selected with specific CEs. It is particularly well suited for use in high reliability, high performance and high density system applications, such as rugged boards. The 3DSR32M16VB2409 is packaged in a 48-balls BGA.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Type SRAM
Data_Sheet

To request a datasheet, contact a member of our high-reliability team [email protected]
Configuration 32Mb
Package BGA 48
Temperature Range
  • 0°C to +70°C
  • -40°C to +85°C
  • -55°C to +125°C
Power Supply 3.3V
Features
  • Single 3.3V power supply (2.4V to 3.6V)
  • High performance, low power CMOS process
  • High Speed Access Time: 10 ns (8ns for Vcc = 3.3V +/- 5%)
  • TTL Compatible Inputs and Outputs
  • #CE power down
  • Fully Static Operation
  • No clock or Refresh required
  • Easy memory expansion with #CE and #OE options
  • Available in 48-Ball BGA package
  • Multiple center power and ground pins for greater noise immunity
More Information
Attribute Value
Data Sheet Click here to view
