3DMC0753
3DMC0753
3D Plus

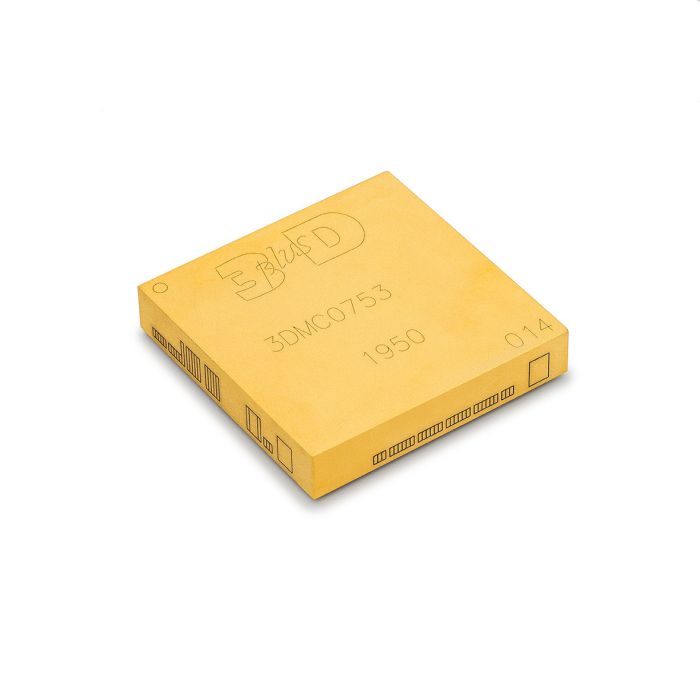

Space computer core with embedded NX1H35AS FPGA
The 3DMC0753 is a complete computer Core FPGA and configuration memory with optional computing and mass storage memory in one module.This all–in one solution procures several key benefits:
- European FPGA
- Reduce significantly the board area
- Modularity, upgradable computer core
- Proven radiation hardened design
The Triple Modular Redundancy TMR hardware is integrated in order to provide SEU immunity thanks to majority-voting system for Error Correction Code. Additional memories can be added inside or outside the module base. The device is manufactured using 3D PLUS well-known MCM-V patented technology designed for high speed circuit applications. It is particularly well suited for use in high reliability, high performance and high density system applications, as a full integrated Computer Core.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | FUSIO RT |
| Data_Sheet |
To request a datasheet, contact a member of our high-reliability team [email protected] |
| Package |
|
| Radiation Tolerance |
|
| Configuration Banks Supplies | 2.5V, 3.3V |
| Temperature Range | -40°C to +105°C |
| Power Supply | 1.2V, 2.5V, 3.3V |
| Features |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
