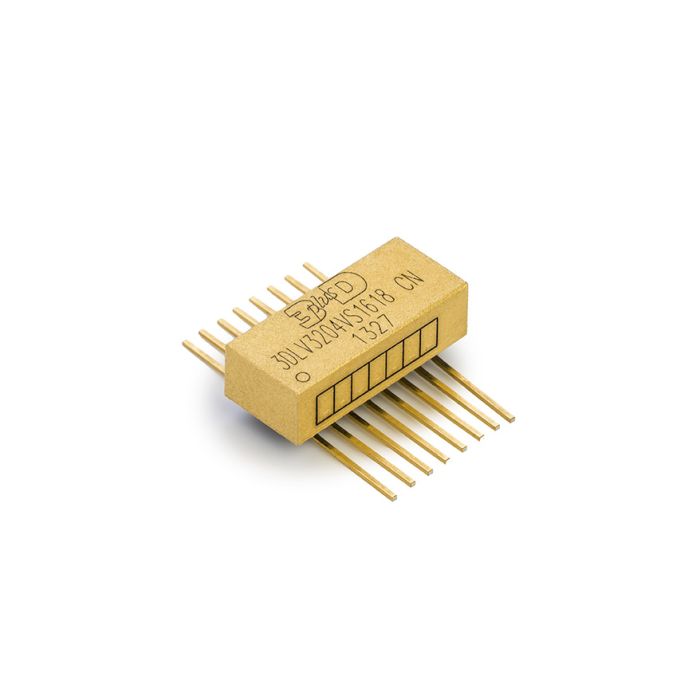

3DLV3204VS1618
3DLV3204VS1618
3D Plus
4-channel LVDS Receiver Module, based on Quad, 4 Lines-SOP
The 3DLV3204VS1618 is four CMOS differential line receiver, designed for applications requring ultra low power dissipation and high data rates. The device is designed to support data rates up to 400 Mbps (200 MHz) utilising Low Voltage Differential Signalling (LVDS) technology.
The 3DLV3204VS1618 accepts low voltage (350 mV typical) differential input signals and translates them to 3V CMOS output levels. The 3DLV3204VS1618 and companion line driver (3DLV3104VS1617) provide a new alternative to high power psuedo-ECL devices for high speed point-to-point interface applications.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Type | LVDS |
| Data_Sheet |
To request a datasheet, contact a member of our high-reliability team [email protected] |
| Pin Assignment | N/A |
| Temperature Range |
|
| Power Supply | 3.3 V power supply |
| Features |
|
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
