SF1001

SF1001

Hioki

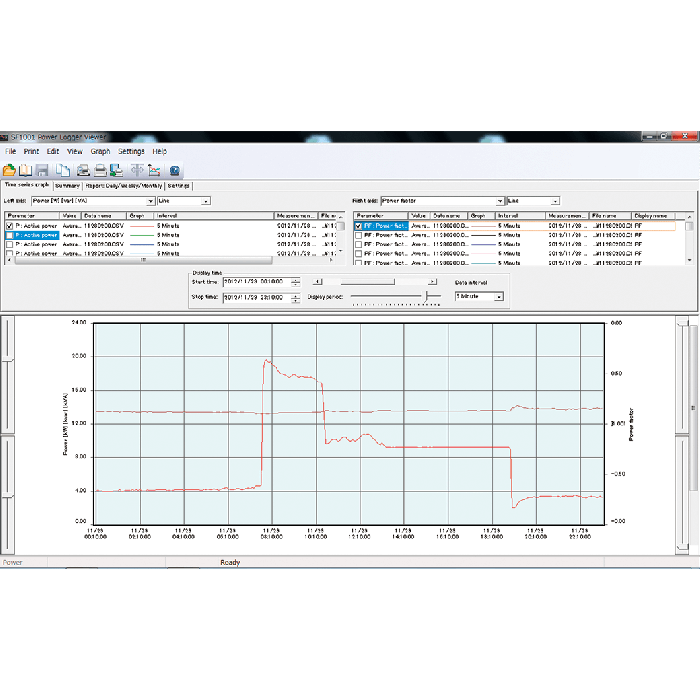

Power Logger Viewer SF1001 - Analyze and Graph Logged Energy Data Captured by Hioki Clamp On Power Loggers on a Windows PC

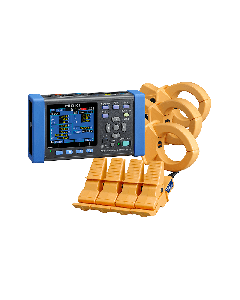

Hioki portable power meters and power analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The SF1001 is a software application for graphing measurement data captured with the PW3360/3365 series, 3169 series Clamp On Power Loggers using a computer.
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Key Features
  • Trend graph display
  • Summary, daily, weekly, and monthly reports
  • Report printing
Basic Specifications
Read-compatible model PW3360/3365 series, 3169 series
Supported computer OS Computer running under Windows 10 (32bit/64bit), Windows 8/8.1 (32bit/64bit), Windows 7 SP1 or later (32bit/64bit)
Trend graph display function [Display item] Voltage, current, active power, reactive power, apparent power, power factor, frequency, integrated active power, integrated reactive power, demand volume, demand value, voltage disequilibrium factor, Pulse, Harmonics (level, content, phase angle, total value, THD)
[Stacked bar graph display] Up to 16 types of data series can be displayed in an overlay graph
[cursor measurements] Measurement values can be displayed by the cursor
Summary Display Function Displayed items are the same as for Trend Graph Display
[Daily, weekly and monthly report displays]: Accumulates and displays daily, weekly and monthly reports over specified period.
[Load factor calculation display]: Calculates and displays load factor and demand factor results with daily, weekly and monthly reports
[Time span aggregation]: Aggregates data into up to four specified time spans
Waveform display Displays waveform data at specified data
Harmonic display [List display]: Displays a list of harmonic data at specified date
[Graph display]: Displays a bar graph of harmonic data at specified date
[Cursor calculation]: Calculates measurement data at cursors in waveform and graph displays
Copy function Captures any display image to the clipboard
Print Function Preview and print content shown on the trend graph, report, harmonic graph and settings displays.
[Comment entry]: (Text comments can be entered in any printout)
[Header/Footer settings]: Sets the header and footer for each printout
[Printing support]: Any color or monochrome printing supported by the operating system
Report printing Print (static) contents over a specific time period
[Output contents]: Standard or selected output items
[Available output items]: Trend graph, summary, daily report, harmonic list, harmonic graph, waveform
[Report creation method]: Standard print
[Report output settings]: Save/load report output settings
Instrument Type Data Logger
More Information
Attribute Value
Data Sheet Click here to view
