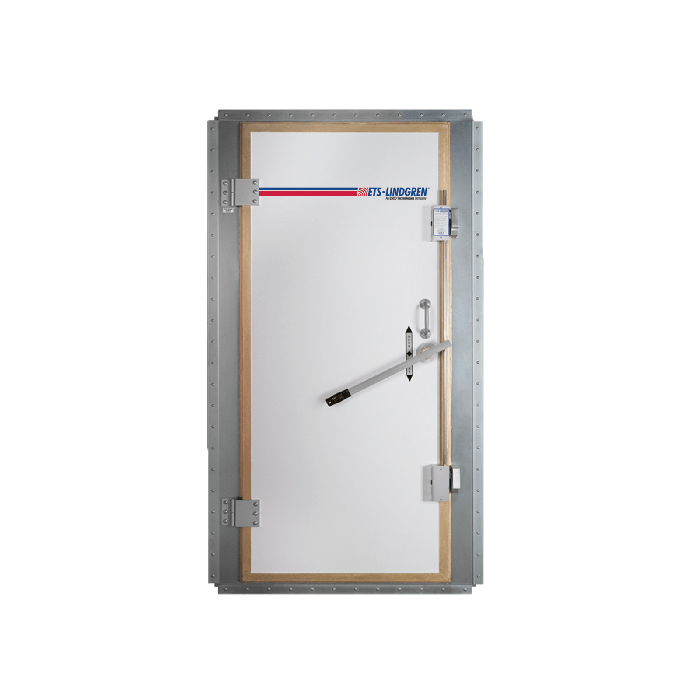

Single Knife Edge (SKE) RF Shielded Door
S201-SKE
ETS-Lindgren
Single knife edge RF shielded door with RCM, 110 dB up to 1 GHz, semi-automatic electro-latch option
Reliable RF Door for Secure, High-Integrity Shielding
The Single Knife Edge RF Shielded Door provides consistent, high-integrity RF sealing through its precision-formed knife edge and proven Recessed Contact Mechanism (RCM), ensuring reliable attenuation for demanding environments. Its rugged design includes 24-gauge steel construction, adjustable thrust-bearing hinges for sag-free operation, and a two-point cam-driven latch system that delivers a secure, repeatable seal.
This door integrates easily with modular, welded, or pan-formed rooms and maintains a flush interior surface to support absorber installation. Maintenance is simplified through easily replaceable beryllium copper finger stock, while compatibility with ramps, panic releases, and electro-latch upgrades enhances flexibility. With attenuation levels up to 110 dB, the SKE Door supports RF, EMI, and industrial applications requiring durable, long-lasting shielding.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Construction | 24-gauge steel laminated door panel, bronze knife edge extrusion, beryllium copper finger stock |
| Features | Precision-machined aluminium hinges with thrust bushings, replaceable beryllium copper finger stock, RCM receiver, heavy-duty cam latch strikes |
| Configuration | Compatible with modular, welded, and pan-formed RF shielded enclosures and anechoic chambers |
| Standards | MIL-STD-285, NSA 65-6/NSA 94-106, ITSG-02/IEEE 299, EN 50147-1 |
| Product Category | Pneumatic & Double/Single Edge Knife Doors |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
