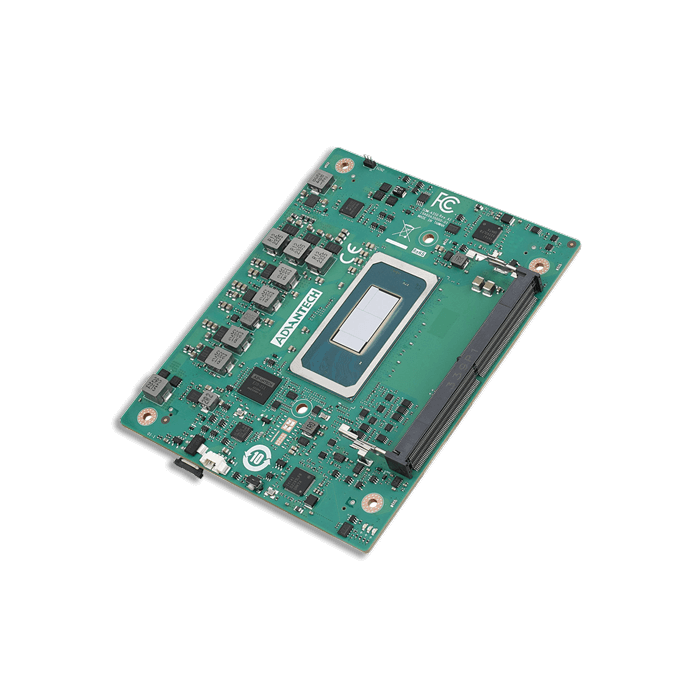

SOM-A350
SOM-A350
Advantech
14th Gen Intel® Core™ processors (Meteor Lake) CPU, COM-HPC Client Size A Module
COM Express Basic Type 6 - COM-HPC with Integrated NPU & PCIe Gen5
COM Express Basic Type 6 provides triple DDI display interfaces, HDA, abundant super speed I/Os and high bandwidth expansion interfaces such as USB3.1, SATAIII and PEG/PCIe gen3. It comes with excellent computing and graphics performance.
Enable Real-Time Transmission & Advanced AI Performance
Next Gen. I/O Technology
- 1 x PCIe x8 Gen5 + 2 x PCIe x4 Gen4
- USB4 reference design
- 2 x 2.5G LAN
Safe & Reliable
- Guiding Post for easier & safer assembly to prevent board damage
- Dual BIOS failsafe
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Pin Out Type | COM-HPC® Client |
| Socket Type | Dual Channel / 2 Sockets, 1DPC |
| Base Frequency | TBD |
| Core/Thread | 14C (6P+8E) |
| LLC | 24MB |
| TDP Range | 28W |
| BIOS | AMI UEFI 256Mbit |
| Speed | 5600MT/s |
| EEC Support | TBD |
| Max Memory Capacity | Up to 96GB |
| SMBus | Yes |
| I²C Bus | Yes |
| Ethernet KR | ntel I226 (Intel controller) ; Speed: 10M / 100M / 1000M / 2.5G speeds |
| SATA | 2 Ports support SATA 3.0 (6Gbps) |
| USB 4.0 | 2 |
| SPI Bus | Yes. For BIOS EEPROM, Support Dual BIOS |
| GPIO | 8-bit, Default to iManager, Option to CPU |
| TPM | TPM2.0 |
| Power Type | ATX: Vin, VSB; AT: Vin |
| Power Consumption (Max) | TBD |
| Power Consumption (Idle) | TBD |
| Vibration Resistance | 3.5 Grms |
| DDI | 3 DDI Port Support Configurable HDMI/DisplayPort - DDI1: DP 1.4a, DDI2: DP2.1, DDI3: DP2.1 - HDMI 2.1: 4096 x 2304 @ 60Hz |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
