SP7002-90

Hioki

Non-Contact Can Sensor, Consists Of SP7002, SP7100, SP9200, And L9500

Skip to the end of the images gallery

Skip to the beginning of the images gallery

This product is available in 5-7 weeks

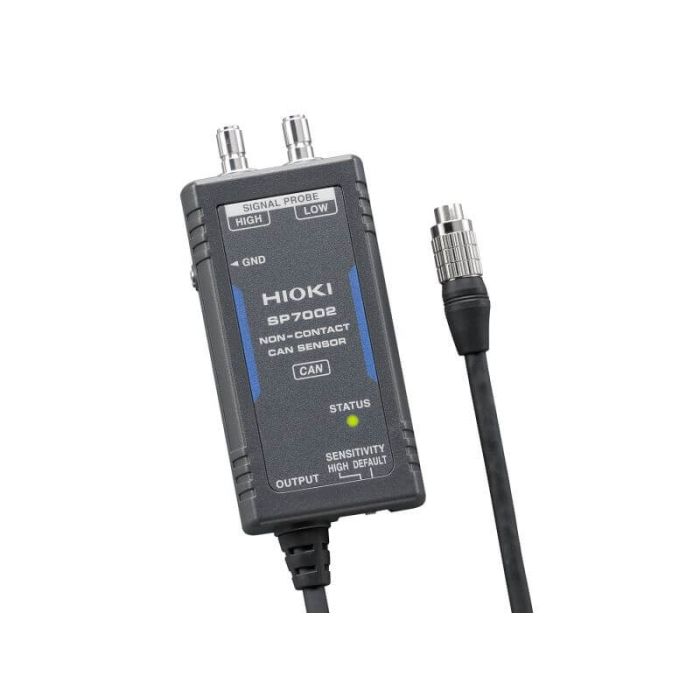

Non-Contact CAN Sensor

Key Features

Measurement Method: Non-contact, capacitive coupling
Supported Protocols: CAN
Communication Speed: 125 kbit/s to 1 Mbit/s
Operating Temperature Range: -40°C to 85°C
Maximum Rated Voltage: 300 V AC/DC (terminal-to-ground)
Power Supply: External power supply (10 V to 30 V DC) or Z1008 AC Adapter
Dimensions: 44 mm (W) × 85 mm (H) × 20 mm (D)
Weight: Approx. 180 g
Output Connector: D-sub 9-pin female

The SP7002-90 Non-Contact CAN Sensor allows for safe and efficient data acquisition from CAN networks without the need for direct contact with or modification of the wiring. Designed for automotive testing, the SP7002-90 captures CAN signals with ease, even in tight and complex wiring environments.

Its non-intrusive design ensures the integrity of the CAN bus during data capture, making it ideal for vehicle diagnostics and real-time monitoring. The sensor supports communication speeds up to 1 Mbit/s and operates reliably across a wide temperature range, making it suitable for both lab and field environments.
