SP7150

SP7150

SP7150

Hioki

CAN-Interface

This product is available in 5-7 weeks

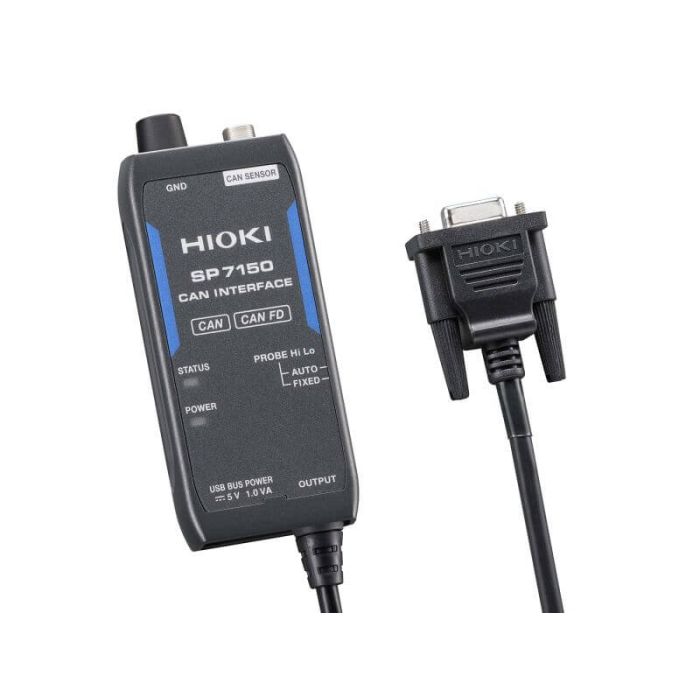

CAN Interface

Key Features

  • Supported Sensors: SP7001-95
  • Number of CAN Channels: 1
  • Power Supply: USB bus power or optional Z1013 AC Adapter
  • Dimensions: 47 mm (W) × 100 mm (H) × 20 mm (D)
  • Weight: Approx. 100 g
  • Operating Temperature Range: -40°C to 85°C
  • Output Connector: D-sub 9-pin female
  • Maximum Rated Voltage: 300 V AC/DC (terminal-to-ground)

The SP7150 CAN Interface is a compact solution for connecting Hioki’s non-contact CAN sensors, such as the SP7001-95, to CAN analysis systems. This interface supports single-channel CAN data output and is designed for seamless integration with automotive testing setups. With USB bus power capability, the SP7150 ensures easy setup and reliable performance in both laboratory and field environments. Its small form factor allows for easy installation in tight spaces, making it ideal for real-time vehicle diagnostics and testing.

In stock
£998.17
More Information
Attribute Value
Data Sheet Click here to view
