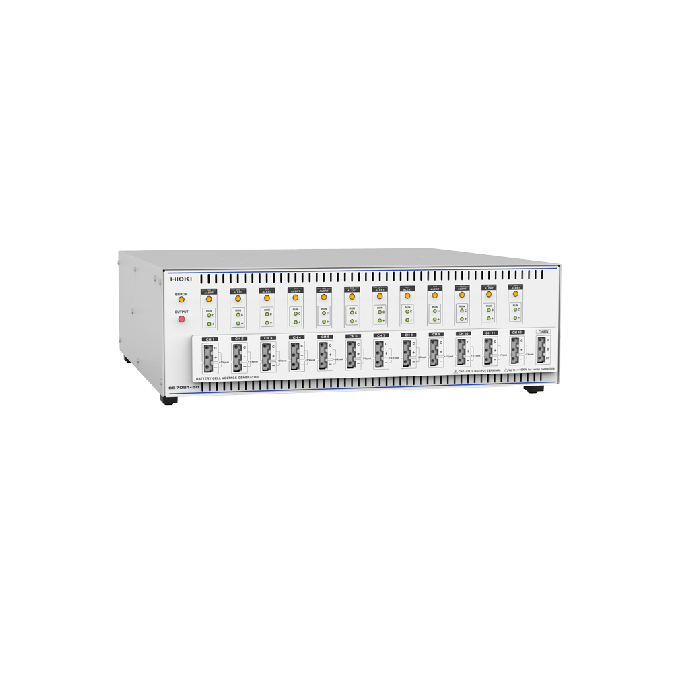

SS7081-50
SS7081-50
Hioki
Battery Cell Voltage Generator
Efficiently and Safely Validate Battery Management Systems
The SS7081-50 a 12-channel battery cell voltage generator that delivers power supply, electronic load, and DMM functionality in a single package. The system's simple architecture makes building an environment for validating BMS (Battery Management System) functionality safer, more affordable and more productive than ever before.
Key Features
- Build a highly accurate BMS (Battery Management System) validation environment easily and safely
- Use as voltage generator or simulated battery in place of actual batteries and power supplies to establish an efficient testing environment
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | Universal (100 V to 240 V AC), 50 Hz / 60 Hz |
| Included Accessories | User manual × 1, power cord × 1, rack frame × 1, disk with computer application × 1 (Available within the range of application specifications) |
| Interfaces | LAN |
| Measurement Items |
DC voltage: -0.00100 V to 5.10000 V |
| Accuracy |
Voltage Output: ±0.0150% of setting ±500 μV Voltage Measurement: ±0.0100% of reading ±100 μV Current Measurement: |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
