ST-1612A-DBX
ST-1612A-DBX
LOCOSYS Technology
Dead Reckoning module for automotive applications

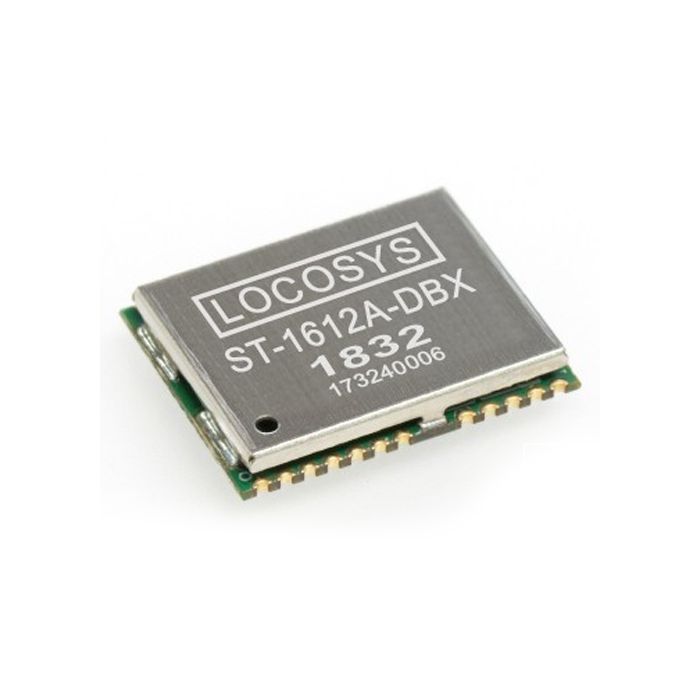

The LOCOSYS ST-1612A-DBX Dead Reckoning (DR) module is the perfect solution for automotive applications.
The ST-1612A-DBX is an embedded 3D accelerometer, 3D gyroscope Micro-Electro-Mechanical Systems (MEMS) sensor, equipped with DR software, and powered by STMicroelectronics Teseo III.
With adverse GNSS conditions in urban environments, tunnels, or parking garages, Dead Reckoning boosts the accuracy with software filling the gaps. It supports three dimensional DR
This module can simultaneously acquire and track multiple satellite constellations that include GPS, BeiDou, GALILEO and QZSS. It features high sensitivity, low power and ultra small form factor, and provides users with superior performance.
ST-1612A-DBX automotive grade module adhere to automotive industry standard quality specifications and production flow.ST-1612A-DBX modules use GNSS chips and MEMS sensors qualified according to AEC-Q100 and are manufactured in ISO/TS 16949 certified sites.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Maximum Input Voltage | 3.0V - 4.3V |
| Satellite Systems |
|
| Operating Temperature | -40 ~ 85°C |
| Interface |
|
| Dimensions | 17 x 12.2 x 2.4 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
