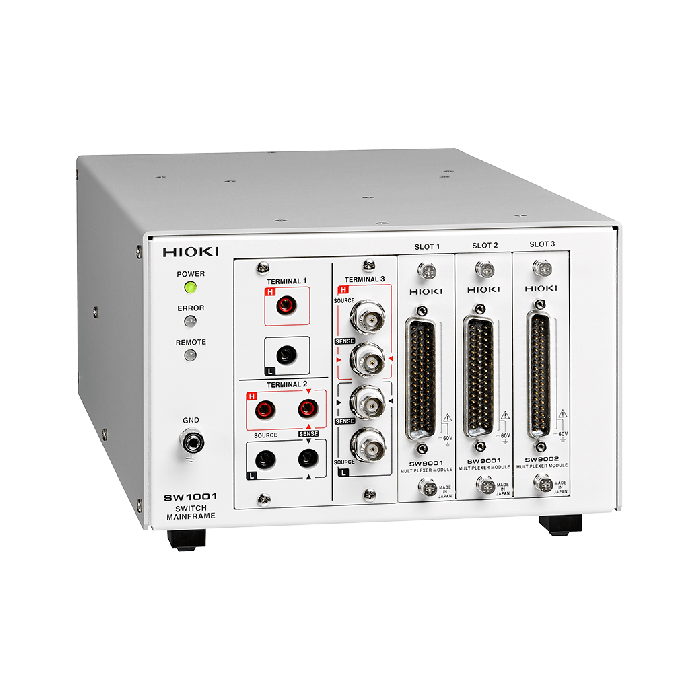

Switch Mainframe SW1001 - Packed with Features to Assure Accuracy in Multi-channel Battery Testing
The SW1001 is a switch mainframe for housing up to 3 units of SW9001 or SW9002 Multiplexer Module to deliver quick, multi-channel battery testing. Connect up to 2 battery testing instruments to test OCV measurement, internal resistance measurement, and external potential measurement of battery cells.
More Information
Attribute
Value
Key Features
Switch between voltmeter and battery tester while testing SW1001: max. 66 channels (2-wire) to max. 18 channels (4-terminal pair) Circuit-design-friendly for impedance measurements that minimize errors between channels (Effect: 0.01% f.s. [*1]) For OCV measurement, internal resistance measurement, and external potential measurement of battery cells Measure battery modules up to 60 V DC
Basic Specifications
Slots
3 slots
Supported modules
MULTIPLEXER MODULE SW9001 (2-wire/4-wire)
Connectible instruments
Max. 2 units
Max. input voltage
60 V DC (Cannot connect to battery packs in excess of 60 V DC), 30 V AC rms, 42.4 V peak, Maximum rated voltage to ground: 60 V DC
Communication I/F
LAN, USB, RS-232C (for host, for measurement instruments)
Functions
Channel switching, wiring method, scan function, communication command transmission, channel delay, shield switching
Power supply
100 to 240 V AC / 30 VA (50/60 Hz)
Dimensions and mass
215 mm (8.46 in) W × 132 mm (5.20 in) H × 420 mm (16.54 in) D, 3.7 kg (130.5 oz)
Accessories
Power cord ×1, instruction manual ×1, usage precautions ×1, USB driver CD ×1
Instrument Type
Battery Tester
Notes
Multiplexer Modules not included with the Switch Mainframe SW1001/SW1002. Modules must be purchased separately.
